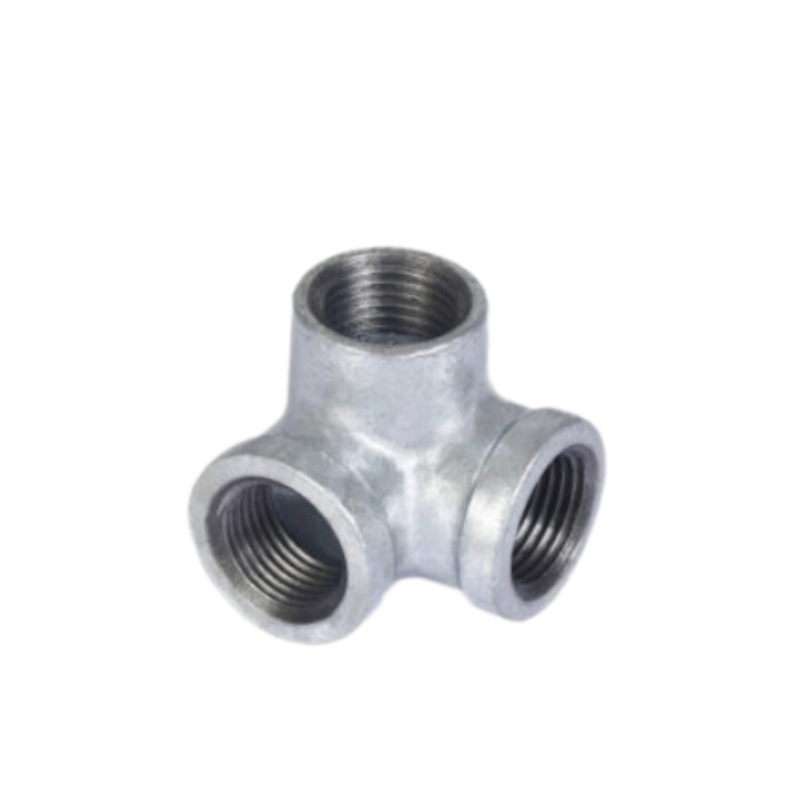

Malleable iron side outlet elbow
Features:
Certificate: FM Approved / UL Listed
Size: (DN 15 – DN 25)
Pressure: class150
Dimensions: BS EN10242
Material: Malleable iron ASTM A-197
Threaded: ISO 7-1

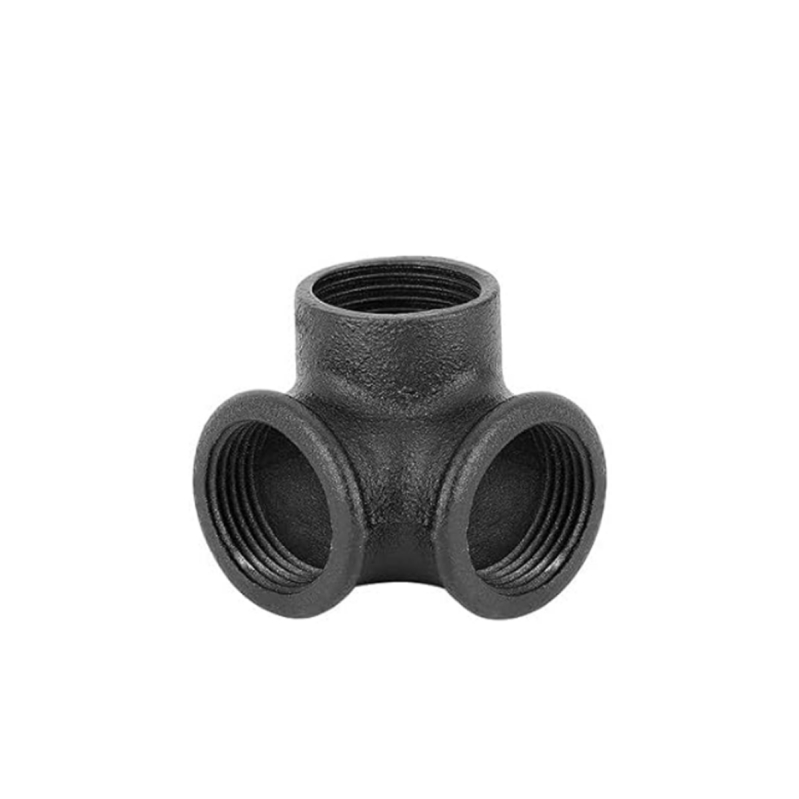

Surface: Black / Electrical galvanized / Hot-dip galvanized
Malleable iron side outlet elbow is with three ends female threads and used to connect the pipes with male thread. It can change the pipeline direction by 90 degree.

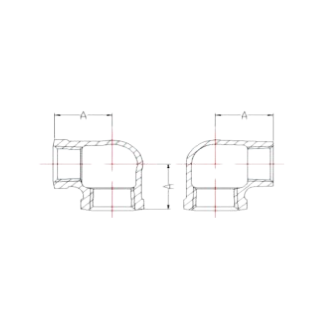

| SIZE | A (MM) | PCS/CTN. | |
| 1/2” | DN15 | 27 | 240 |
| 3/4” | DN20 | 32 | 140 |
| 1” | DN25 | 37 | 80 |
