Malleable iron M&F union(brass seat) BS EN

Features:

Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61

Size: DN15 – DN50

Pressure: 2.5 Mpa / PN25

Dimensions: BS EN10242

Material: Malleable iron BS EN1562

Threaded: BSPP (ISO228) / BSPT (ISO7-1)

Surface: Black / Electrical galvanized / Hot-dip galvanized

Chat Now

Product details

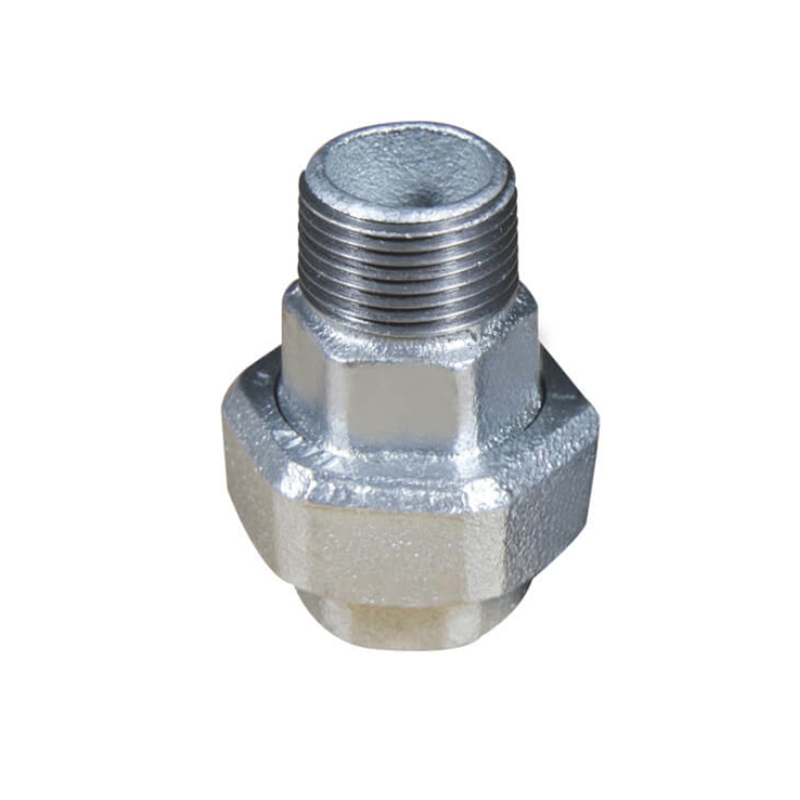

Malleable iron M&F union (brass seat) has female thread on one side and male thread on the other side. It can make pipe connection more convenient. There is a brass ring in the middle of the fitting and sealing is achieved by brass to iron

SIZE		L (MM)	PCS/CTN.
1/2”	DN15	44	600
3/4”	DN20	45	380
1”	DN25	52	180
1 1/4”	DN32	57	120
1 1/2”	DN40	60	80
2”	DN50	66	48
