Features:
Certificate: FM Approved / UL Listed / BSI / LPCB / NSF 61
Size: DN8 – DN150
Pressure: 2.5 Mpa / PN25
Dimensions: BS EN10242
Material: Malleable iron BS EN1562
Threaded: BSPP (ISO228) / BSPT (ISO7-1)
Surface: Black / Electrical galvanized / Hot-dip galvanized

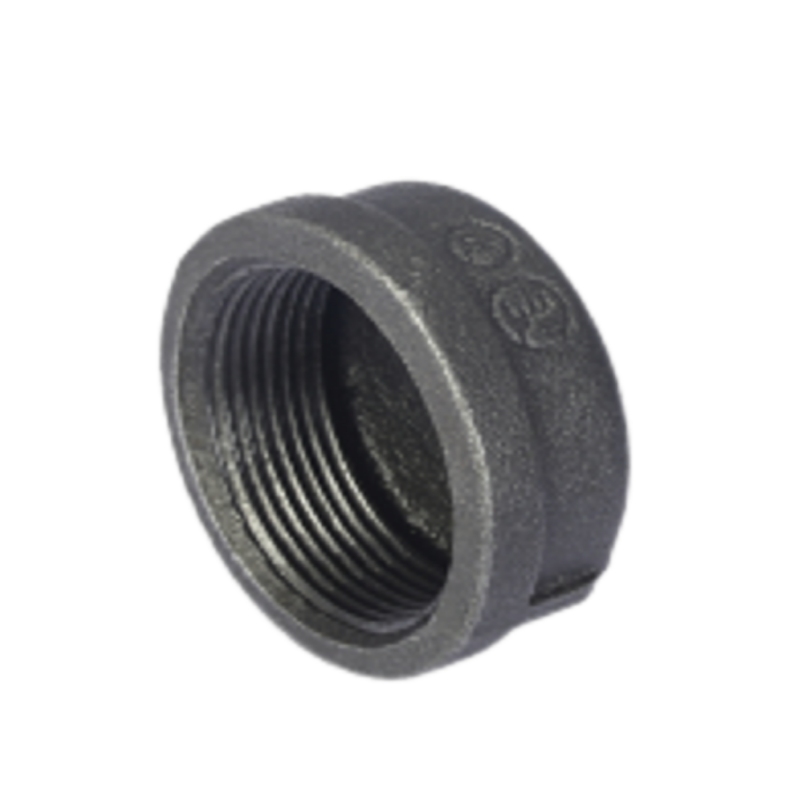

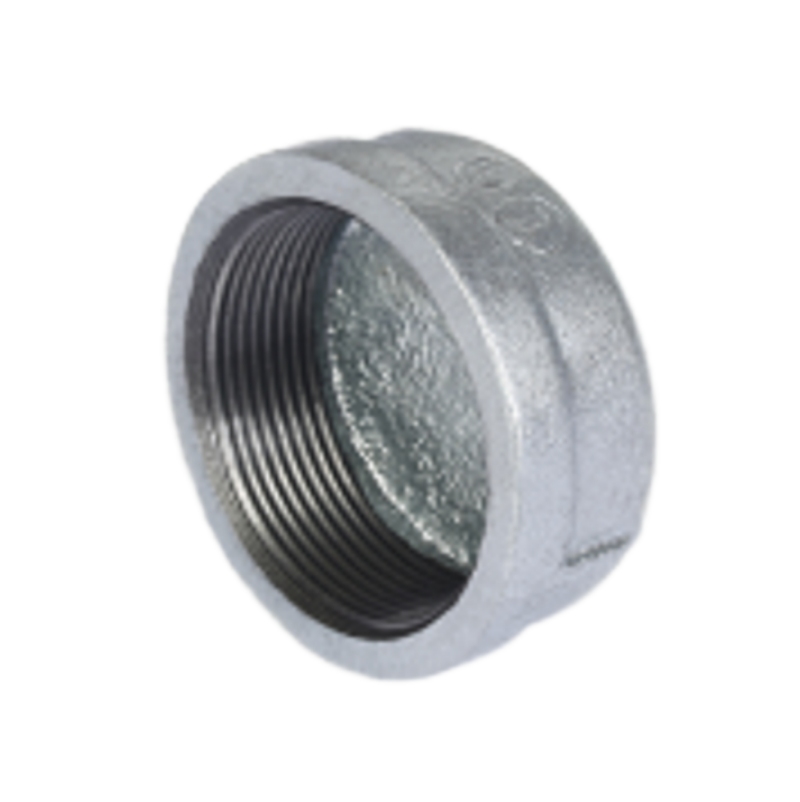

Malleable iron round cap is a kind of pipe fitting commonly used in the end of pipe to stop the fluid system.
| SIZE | A (MM) | PCS/CTN. | |
| 1/4” | DN8 | 16 | 1200 |
| 3/8” | DN10 | 17 | 1200 |
| 1/2” | DN15 | 19 | 700 |
| 3/4” | DN20 | 22 | 500 |
| 1” | DN25 | 24 | 360 |
| 1 1/4” | DN32 | 27 | 220 |
| 1 1/2” | DN40 | 27.5 | 160 |
| 2” | DN50 | 32 | 100 |
| 2 1/2” | DN65 | 36 | 60 |
| 3” | DN80 | 39 | 38 |
| 4” | DN100 | 46 | 20 |
| 6” | DN150 | 59 | / |
Fluid tech group is the first company in northern China that specializes in the field of fire protection.
