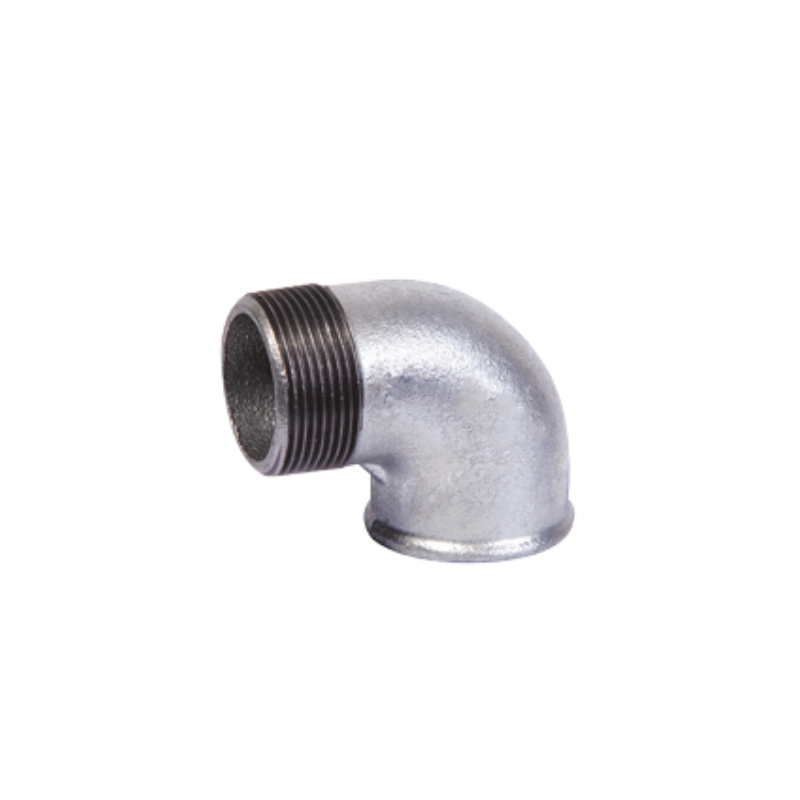

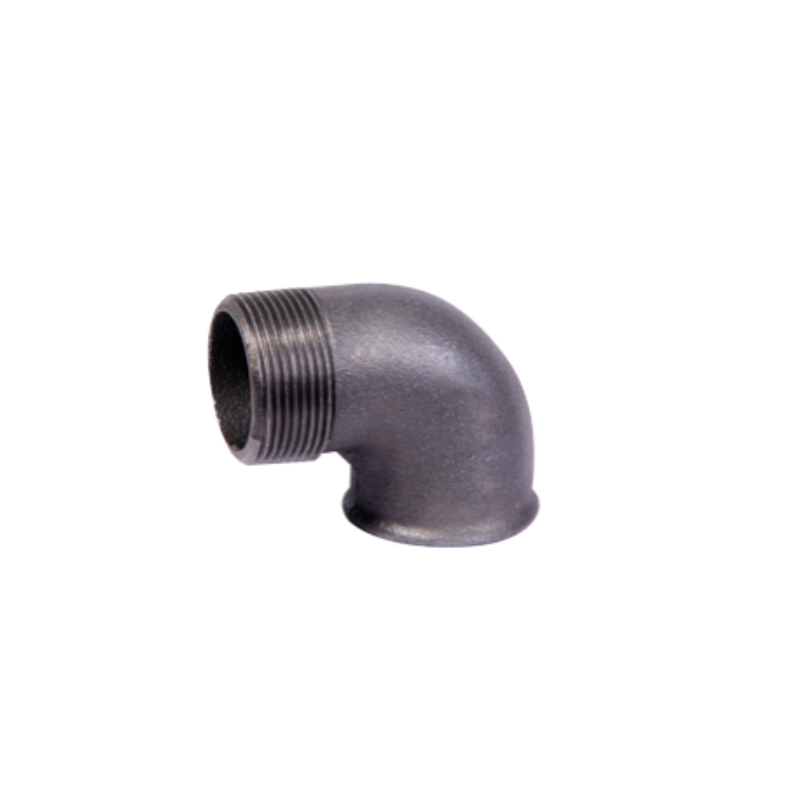

This malleable iron street Elbow Fig 92 beaded is manufactured in accordance with DIN standards. It is used for 90° turning connection in narrow spaces of piping systems, with one male thread and one female thread for compact and convenient installation. Made of high-quality black heart malleable iron with high-temperature annealing, it features good toughness, high strength and impact resistance. The beaded structure reinforces the pipe end, with high-precision threads and reliable sealing. It is available in black, electro-galvanized or hot-dip galvanized finish, corrosion-resistant and easy to install, widely used in water, gas, steam, fire protection and various low-pressure industrial fluid piping systems.
Malleable iron street elbow is a kind of connection pipe fittings, one is internally threaded and the other one is externally threaded.Internal threaded are usually used to connect externally threaded pipes, and external threaded are usually used to connect internally threaded pipes
Product Parameters
Standard: DIN EN 10242
Type: Street Elbow Fig 92 Beaded
Material: Black Heart Malleable Iron
Pressure Class: 150LB / 300LB
Temperature Range: -20℃ ~ 230℃
Thread Standard: DIN 2999
Surface Treatment: Black / Electro-galvanized / Hot-dip Galvanized
Applicable Media: Water, hot water, oil, gas, compressed air, fire water, low-pressure steam
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | |
| Dim. | A | 19 | 21 | 25 | 28 | 33 | 38 |
| (mm) | B | 25 | 28 | 32 | 37 | 43 | 52 |
| Size | Inch | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| mm | 32 | 40 | 50 | 65 | 80 | 100 | |
| Dim. | A | 45 | 50 | 58 | 69 | 78 | 96 |
| (mm) | B | 60 | 65 | 74 | 88 | 98 | 118 |
Fire Protection Systems: Turning connection in narrow spaces of sprinkler networks
Water Supply & Drainage: Turning installation for compact layout of building pipelines
HVAC & Heating: Turning connection for boiler and radiator system pipelines
Industrial Pipelines: Turning transition in narrow spaces of compressed air and steam pipelines
Gas Engineering: Turning connection for compact layout of gas pipelines
Marine & Mining: Male-female turning installation for low-pressure fluid pipelines
Inspect the street Elbow Fig 92 beaded before installation to ensure no cracks, deformation and intact beads and threads
Clean impurities on threads of fittings to ensure clean connection
Wind PTFE tape clockwise or apply pipe thread sealant on male threads
Tighten the Elbow Fig 92 evenly with a wrench to proper sealing, avoid overloading
Pressure test after installation; put into use only after confirming no leakage
Regularly check the Elbow Fig 92 for leakage, looseness and corrosion
Apply anti-rust treatment in outdoor or humid environments to extend service life
Replace in time if cracks, bead damage, thread slipping or seal failure occurs
