Mechanical Tee ASTM A536 GR x Thread（MECH TEE) Pipe Fitting

Product Features (Specifications – Plain English List)

Standard: UL/FM, GB standards

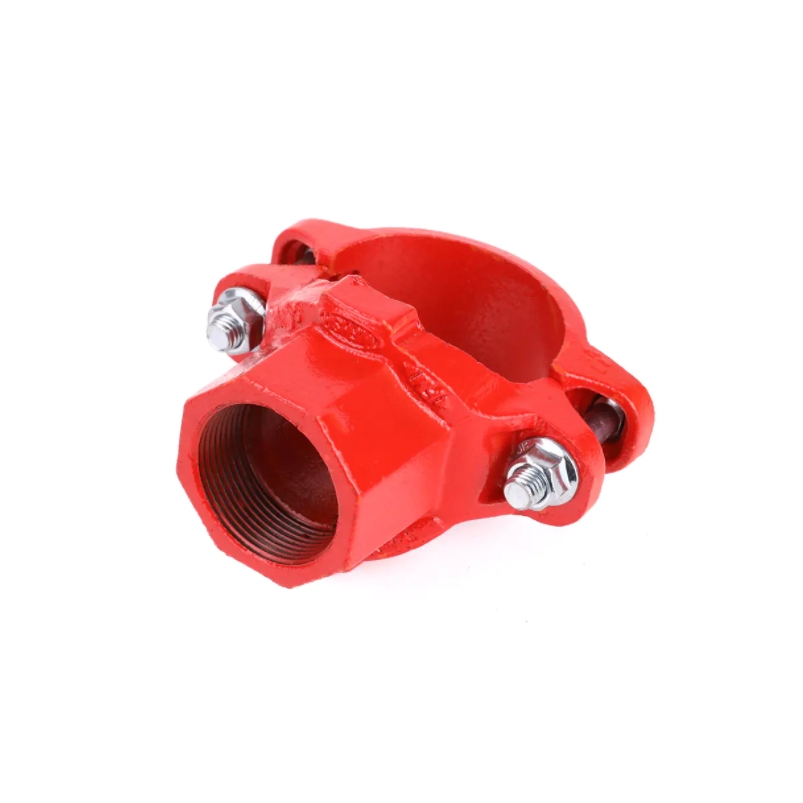

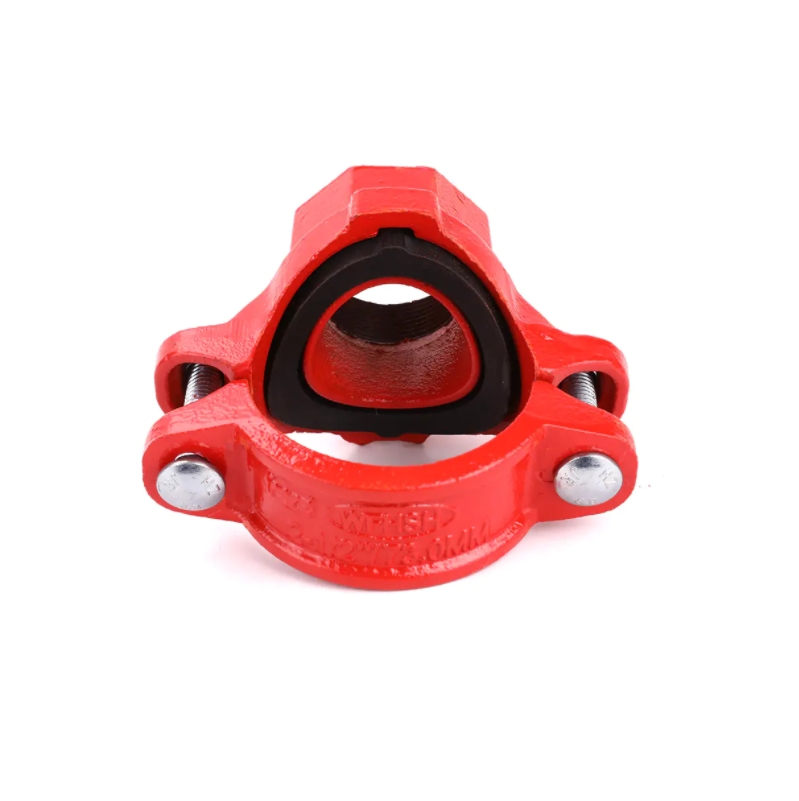

Type: Mechanical Tee ASTM A536 GR x Thread（MECH TEE)

Material: Ductile iron

Connection type: Grooved main pipe, threaded branch outlet

Pressure class: 1.6MPa / 2.5MPa

Temperature range: -20℃ ~ 120℃

Surface treatment: Red painted / Epoxy coated

Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

Chat Now

Product details

An assembly of mechanical tees is assembled around the pipe, positioning the collar inside the hole and enclosing a rubber gasket designed to fit the particular piping system. By fastening the bolts, the branch becomes more secure. A mechanical tee is used to connect piping directly to a system.

Product Overview

This mechanical Tee ASTM A536 GR x Thread（MECH TEE) is used for branch line connection on main grooved pipelines in fire protection, water supply and industrial piping systems. It enables on-site tapping and branch installation without cutting the main pipe, featuring convenient construction and reliable sealing. Made of high-strength ductile iron, it provides good pressure resistance and long service life.

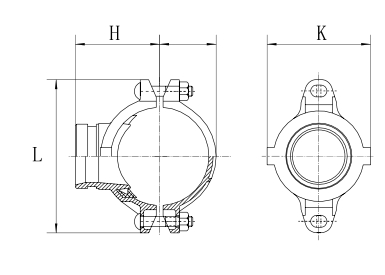

Specifications Table (Dimensions & Parameters)

SIZE		OD SIZE	Φ(MM)	L (MM)	K (MM)	H (MM)
2”×1”	DN50×DN25	60.3X33.7	75	116	58	72
2”×1 1/4”	DN50×DN32	60.3X42.4	75	116	63	75
2”×1 1/2”	DN50×DN40	60.3X48.3	75	116	68	75
2 1/2”×1”	DN65×DN25	73.0X33.7	92	128	68	83
2 1/2”×1 1/4”	DN65×DN32	73.0X42.4	92	128	76	72
2 1/2”×1 1/2”	DN65×DN40	73.0X48.3	92	128	76	83
2 1/2”×1”	DN65×DN25	76.1X33.7	92	128	68	83
2 1/2”×1 1/4”	DN65×DN32	76.1X42.4	96	128	76	83
2 1/2”×1 1/2”	DN65×DN40	76.1X48.3	96	128	76	83
3”×1”	DN80×DN25	88.9X33.7	108	151	78	74
3”×1 1/4”	DN80×DN32	88.9X42.4	108	151	78	86
3”×1 1/2”	DN80×DN40	88.9X48.3	108	151	78	86
3”×2”	DN80×DN50	88.9X60.3	108	151	78	101
4”×1”	DN100×DN25	108.0X33.7	130	175	86	76
4”×1 1/4”	DN100×DN32	108.0X42.4	130	175	92	89
4”×1 1/2”	DN100×DN40	108.0X48.3	130	175	92	89
4”×2”	DN100×DN50	108.0X60.3	130	175	96	105
4”×2 1/2”	DN100×DN65	108.0X73.0	130	175	98	110
4”×2 1/2”	DN100×DN65	108.0X76.1	130	175	98	110
4”×3”	DN100×DN80	108.0X88.9	130	175	98	124
4”×1”	DN100×DN25	114.3X33.7	136	183	88	76
4”×1 1/4”	DN100×DN32	114.3X42.4	136	183	94	89
4”×1 1/2”	DN100×DN40	114.3X48.3	136	183	94	89
4”×2”	DN100×DN50	114.3X60.3	136	183	98	105
4”×2 1/2”	DN100×DN65	114.3X73.0	136	183	100	110
4”×2 1/2”	DN100×DN65	114.3X76.1	136	183	100	110
4”×3”	DN100×DN80	114.3X88.9	136	183	100	124
5”×1”	DN125×DN25	133.0X33.7	157	212	100	80
5”×1 1/4”	DN125×DN32	133.0X42.4	158	212	100	93
5”×1 1/2”	DN125×DN40	133.0X48.3	159	212	100	93
5”×2”	DN125×DN50	133.0X60.3	160	212	104	105
5”×2 1/2”	DN125×DN65	133.0X76.1	161	212	104	112
5”×3”	DN125×DN80	133.0X88.9	162	212	107	131
5”×1”	DN125×DN25	139.7X33.7	164	219	103	80
5”×1 1/4”	DN125×DN32	139.7X42.4	164	219	103	93
5”×1 1/2”	DN125×DN40	139.7X48.3	164	219	103	93
5”×2”	DN125×DN50	139.7X60.3	164	219	107	105
5”×2 1/2”	DN125×DN65	139.7X76.1	164	219	107	112
5”×3”	DN125×DN80	139.7X88.9	164	219	110	131
5”×1”	DN125×DN25	141.3X33.7	164	219	103	80
5”×1 1/4”	DN125×DN32	141.3X42.4	164	219	103	93
5”×1 1/2”	DN125×DN40	141.3X48.3	164	219	103	93
5”×2”	DN125×DN50	141.3X60.3	164	219	107	105
5”×2 1/2”	DN125×DN65	141.3X76.1	164	219	107	112
5”×3”	DN125×DN80	141.3X88.9	164	219	110	131
6”×1”	DN150×DN25	159.0X33.7	190	245	116	80
6”×1 1/4”	DN150×DN32	159.0X42.4	190	245	120	90
6”×1 1/2”	DN150×DN40	159.0X48.3	190	245	120	90
6”×2”	DN150×DN50	159.0X60.3	190	245	123	105
6”×2 1/2”	DN150×DN65	159.0X76.1	190	245	123	110
6”×3”	DN150×DN80	159.0X88.9	190	245	123	130
6”×1”	DN150×DN25	165.1X33.7	190	245	116	80
6”×1 1/4”	DN150×DN32	165.1X42.4	190	245	120	90
6”×1 1/2”	DN150×DN40	165.1X48.3	190	245	120	90
6”×2”	DN150×DN50	165.1X60.3	190	245	123	105
6”×2 1/2”	DN150×DN65	165.1X76.1	190	245	123	110
6”×3”	DN150×DN80	165.1X88.9	190	245	123	130
6”×1”	DN150×DN25	168.3X33.7	192	250	117	80
6”×1 1/4”	DN150×DN32	168.3X42.4	192	250	121	90
6”×1 1/2”	DN150×DN40	168.3X48.3	192	250	121	90
6”×2”	DN150×DN50	168.3X60.3	192	250	124	105
6”×2 1/2”	DN150×DN65	168.3X73.0	192	250	124	110
6”×2 1/2”	DN150×DN65	168.3X76.1	192	250	124	110
6”×3”	DN150×DN80	168.3X88.9	192	250	124	130
8”×1”	DN150×DN25	219.1X33.7	240	302	140	80
8”×1 1/4”	DN200×DN32	219.1X42.4	240	302	142	92
8”×1 1/2”	DN200×DN40	219.1X48.3	240	302	142	92
8”×2”	DN200×DN50	219.1X60.3	240	302	150	105
8”×2 1/2”	DN200×DN65	219.1X76.1	240	302	150	115
8”×3”	DN200×DN80	219.1X88.9	240	302	150	134
8”×4”	DN200×DN100	219.1X114.3	246	302	158	167

Product Applications

Branch tapping connection in fire sprinkler systems
Pipeline branch installation in water supply systems
Small branch connection for HVAC circulating water pipelines
On-site branch modification for industrial fluid pipelines
Urban pipe network and fire protection engineering

Installation and Maintenance

Inspect the mechanical Tee ASTM A536 GR x Thr for cracks or deformation before installation
Clean the main pipe surface and install the gasket properly
Fix the mechanical Tee ASTM A536 GR x Thr on the main pipe and tighten bolts evenly
Use PTFE tape on the threaded branch to ensure good sealing
Conduct pressure test after installation to check for leakage
Regularly check sealing condition and bolt tightness

Related Products

Grooved equal Tee ASTM A536 GR x Thr

Grooved reducing Tee ASTM A536 GR x Thr

Grooved cross

Mechanical cross

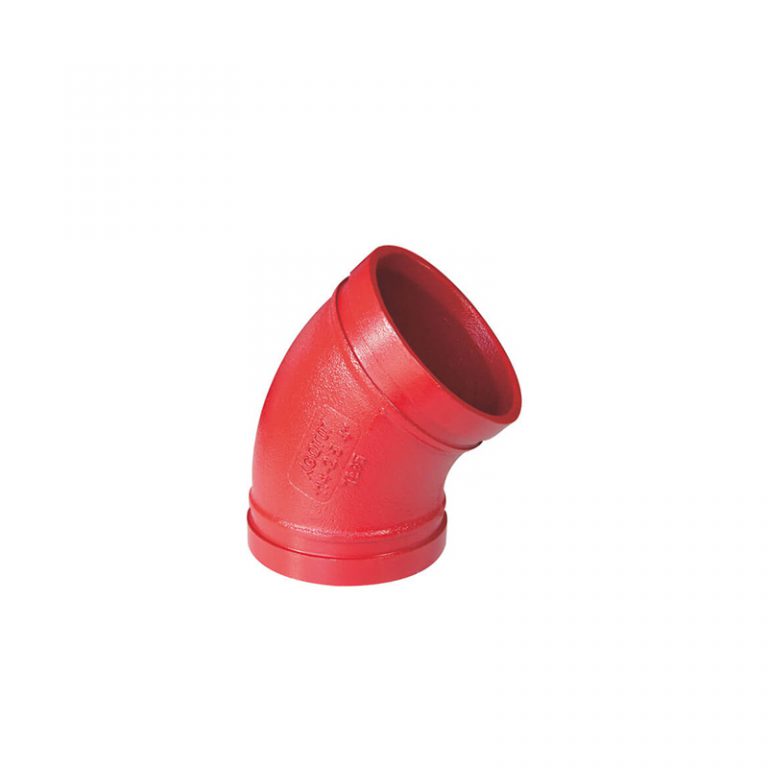

Grooved elbow
