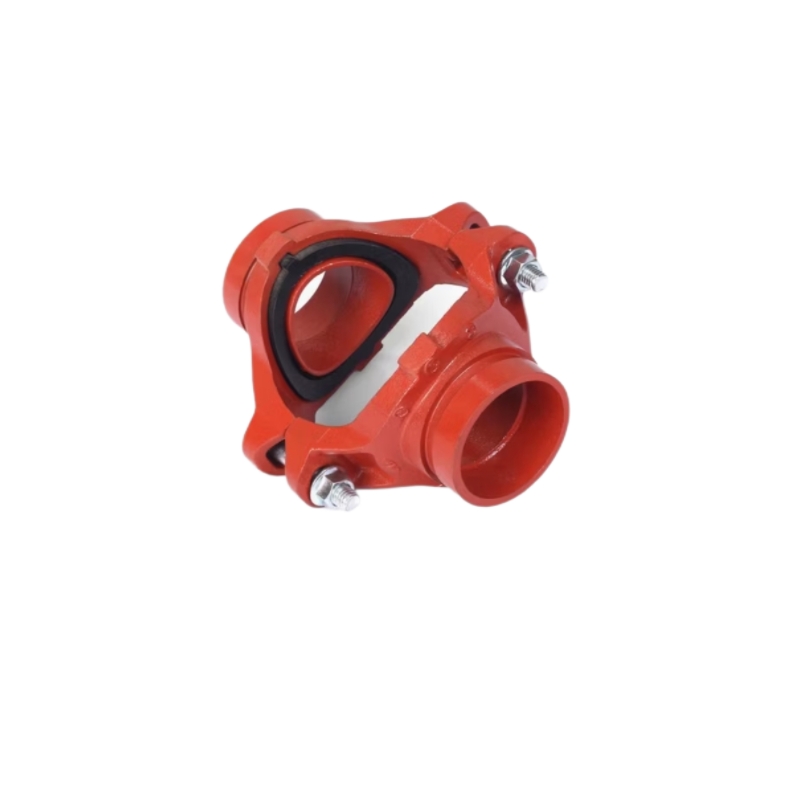

Mechanical Cross ASTM A536 with grooved branches Pipe Fitting

Product Features (Specifications – Plain English List)

Product Parameters

Standard: UL/FM, GB standards

Type: Mechanical Cross ASTM A536 with grooved branches

Material: Ductile iron

Connection type: Grooved main pipe, grooved branch outlets

Pressure class: 1.6MPa / 2.5MPa

Temperature range: -20℃ ~ 120℃

Surface treatment: Red painted / Epoxy coated

Application: Water, fire fighting sprinkler, HVAC, industrial fluid pipelines

Chat Now

Product details

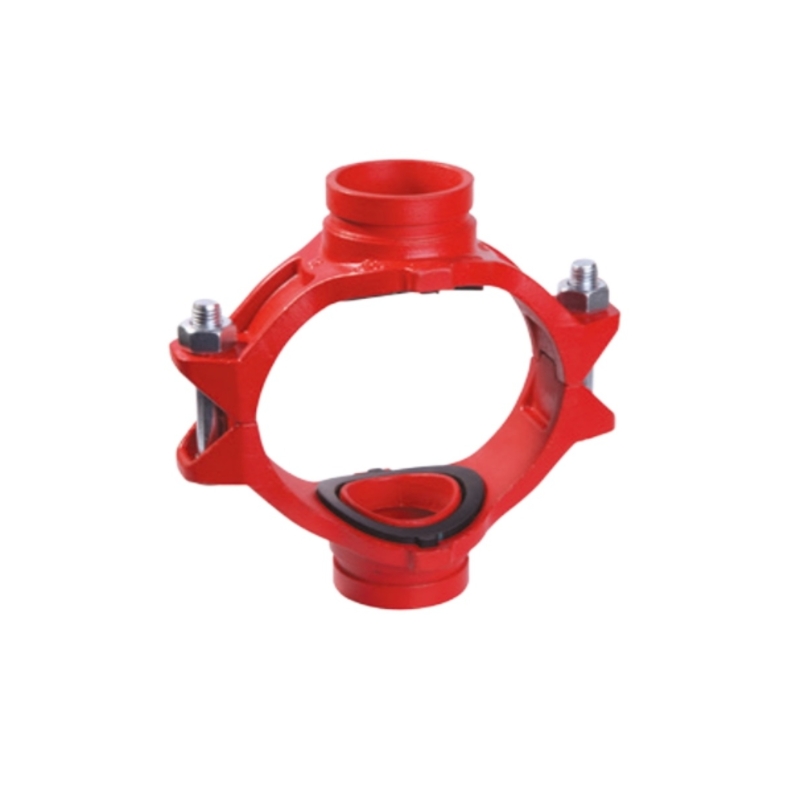

Mechanical cross with grooved branches provides two additional grooved outlets in existing pipeline, by connecting the pre-set holes at the main pipe surface.

Product Overview

This Mechanical Cross ASTM A536 with grooved branches is used for multi-directional branch line connection on main grooved pipelines in fire protection, water supply and industrial piping systems. It allows on-site tapping and branch installation without cutting the main pipe, featuring convenient construction and reliable sealing. Made of high-strength ductile iron, it provides good pressure resistance and long service life.

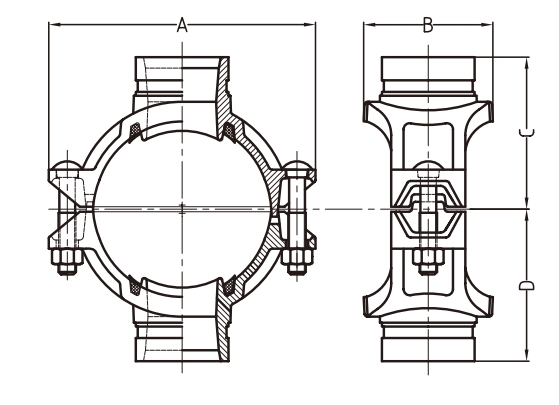

Specifications Table (Dimensions & Parameters)

SIZE		OD SIZE	A (MM)	B (MM)	C (MM)	D (MM)
2”×1 1/4”	DN50×DN32	60.3X42.4	116	76	69.5	69.5
2”×1 1/2”	DN50×DN40	60.3X48.3	116	76	69.5	69.5
2 1/2”×1 1/4”	DN65×DN32	73.0X42.4	144	84.5	75	75
2 1/2”×1”	DN65×DN25	76.1X33.7	137	71	78	78
2 1/2”×1 1/4”	DN65×DN32	76.1X42.4	137	84.5	78	78
3”×1”	DN80×DN25	88.9X33.7	152	72.5	84.5	84.5
3”×1 1/4”	DN80×DN32	88.9X42.4	152	85.5	84.5	84.5
3”×1 1/2”	DN80×DN40	88.9X48.3	152	85.5	84.5	84.5
3”×2”	DN80×DN50	88.9X60.3	152	98	84.5	84.5
4”×1”	DN100×DN25	114.3X33.7	188	78.4	102	102
4”×1 1/4”	DN100×DN32	114.3X42.4	188	89	102	102
4”×1 1/2”	DN100×DN40	114.3X48.3	188	89	102	102
4”×2”	DN100×DN50	114.3X60.3	188	104.5	102	102
4”×2 1/2”	DN100×DN65	114.3X76.1	188	104.5	102	102
4”×3”	DN100×DN80	114.3X88.9	188	128	102	102
5”×2”	DN125×DN50	139.7X60.3	221	112.5	118	118
5”×2 1/2”	DN125×DN65	139.7X76.1	221	112.5	118	118
5”×3”	DN125×DN80	139.7X88.9	221	132	118	118
5”×4”	DN125×DN100	139.7X114.3	221	160	125	125
6”×2”	DN150×DN50	165.1X60.3	244	112.5	127	127
6”×2 1/2”	DN150×DN65	165.1X76.1	244	112.5	127	127
6”×3”	DN150×DN80	165.1X88.9	244	132	141	141
6”×1 1/2”	DN150×DN40	168.3X48.3	247	95	128	128
6”×2”	DN150×DN50	168.3X60.3	247	114	134	134
6”×2 1/2”	DN150×DN65	168.3X73.0	247	115	134	134
6”×3”	DN150×DN80	168.3×88.9	247	132	141	141
6”×4”	DN150×DN100	159.1X108.0	244	154	133	133
6”×4”	DN150×DN100	159.1X114.3	244	159	125	125
6”×1 1/2”	DN150×DN40	165.1X48.3	244	93	128.5	128.5
6”×4”	DN150×DN100	165.1X114.3	244	154	135	135
6”×2 1/2”	DN150×DN65	168.3X76.1	247	112.5	135	135
6”×4”	DN150×DN100	168.3X114.3	247	160	138	138
8”×2”	DN200×DN50	219.1X60.3	320	118	158	158
8”×2 1/2”	DN200×DN65	219.1X76.1	320	118	158	158
8”×3”	DN200×DN80	219.1X88.9	320	136.5	161	161
8”×4”	DN200×DN100	219.1X108.0	320	162	161	161
8”×4”	DN200×DN100	219.1X114.3	320	162	161	161
10”×2 1/2”	DN250×DN65	273.0X76.1	376	118	189	189
10”×3”	DN250×DN80	273.0X88.9	376	136.5	189	189
10”×4”	DN250×DN100	273.0X108.0	376	164	189	189
10”×4”	DN250×DN100	273.0X114.3	376	164	189	189

Product Applications

Multi-branch tapping connection in fire sprinkler systems
Pipeline branch installation in water supply systems
Large branch connection for HVAC circulating water pipelines
On-site branch modification for industrial fluid pipelines
Urban pipe network and fire protection engineering

Installation and Maintenance

Inspect the Mechanical Cross ASTM A536 for cracks or deformation before installation
Clean the main pipe surface and install the gasket properly
Fix the Mechanical Cross ASTM A536 on the main pipe and tighten bolts evenly
Connect grooved branches with corresponding pipe fittings
Conduct pressure test after installation to check for leakage
Regularly check sealing condition and bolt tightness

FAQ

Can you supply OEM?

OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.

What’s the MOQ?

The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.

How about the order processing and lead time?

After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.

What quality will be ensured?

All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.

Can you guide the installation?

Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
