Socket weld boss

Features:

Certificate: ISO

American Standard: ASME B16.11

Material: Carbon steel ASTM A 105 / Stainless steel

Type: Forged fitting

W.pressure: Class 3000 / 6000 / 9000

Surface: Original / hot dip galvanized

Chat Now

Product details

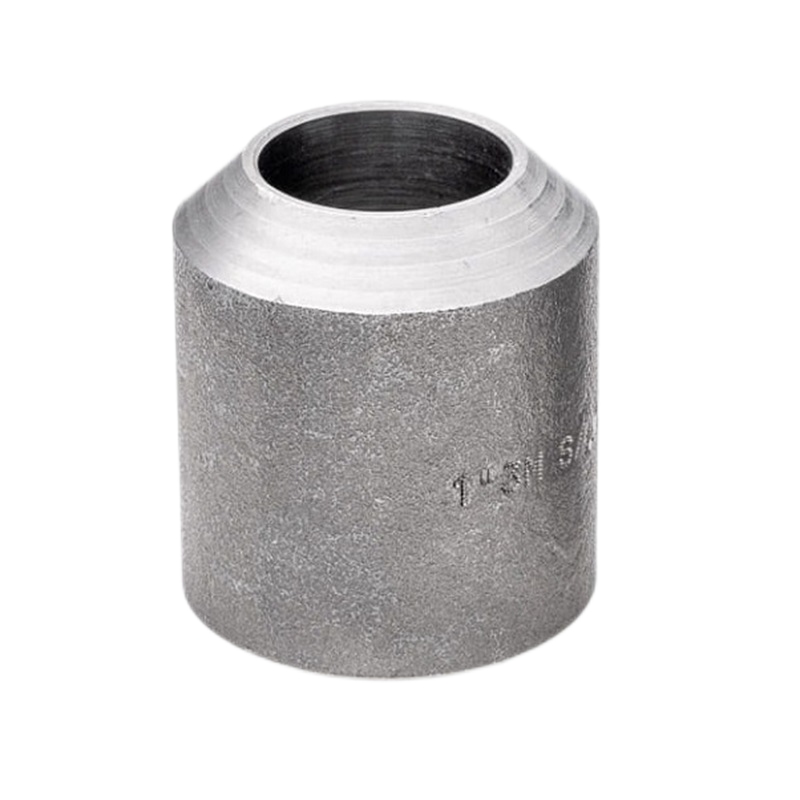

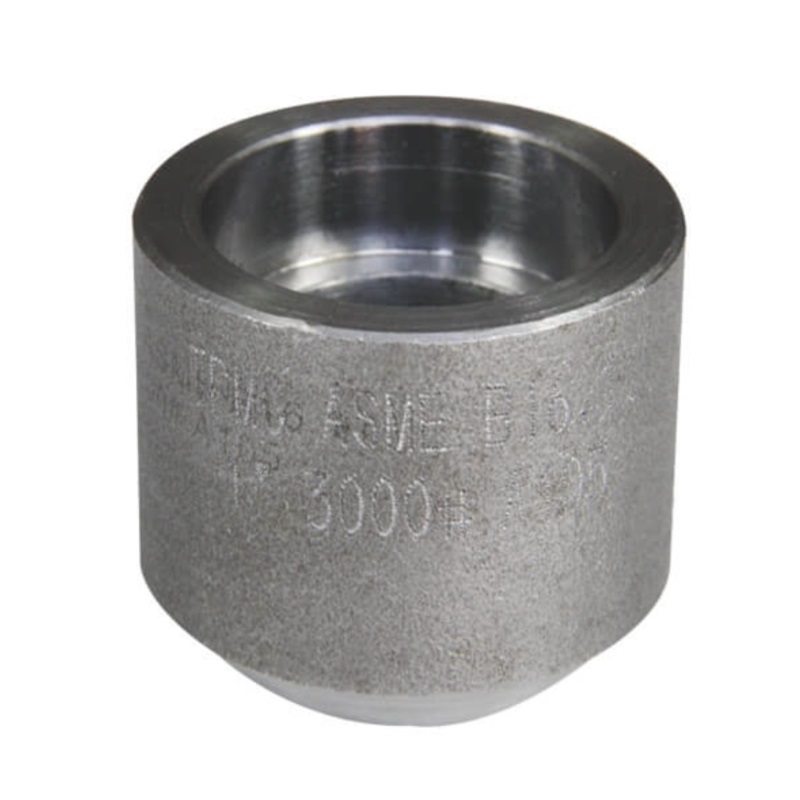

SW boss is a special fitting used to create branch connections in a piping system. The SW boss is designed to connect smaller pipes or nozzles to larger main pipes by welding. The “boss” refers to the raised or reinforced area around the socket that provides additional material and strength to the connection, making it suitable for high-pressure applications.

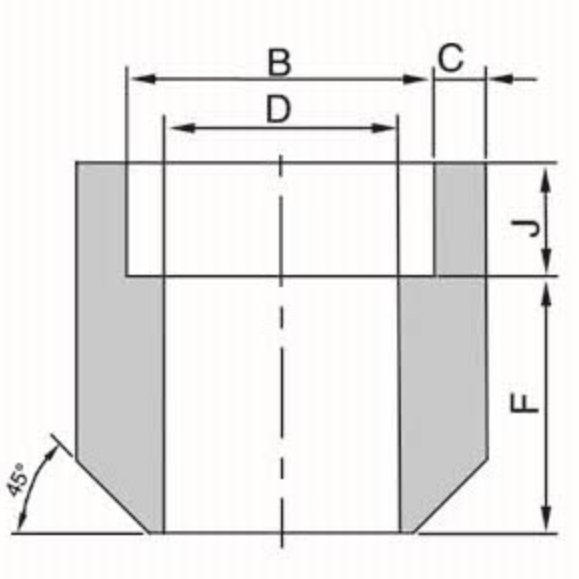

SIZE		Socket Bore Dia. B	Bore Dia. Of fittings D			Socket Wall C min			Depth of socket J min	Laying Length F
NPS	DN	Socket Bore Dia. B	3000 LB	6000 LB	9000 LB	3000 LB	6000 LB	9000 LB	Depth of socket J min	Laying Length F
1/8”	6	10.9	6.1	3.2	–	3.18	3.43	–	9.5	16.0
1/4”	8	14.3	8.5	5.6	–	3.30	4.01	–	9.5	16.0
3/8”	10	17.7	11.8	8.4	–	3.50	4.37	–	9.5	17.5
1/2”	15	21.9	15.0	11.0	5.6	4.09	5.18	8.18	9.5	22.5
3/4”	20	27.3	20.2	14.8	10.3	4.27	6.04	8.56	12.5	24.0
1”	25	34.0	25.9	19.9	14.4	4.98	6.93	9.96	12.5	28.5
1-1/4”	32	42.8	34.3	28.7	22.0	5.28	6.93	10.62	12.5	30.0
1-1/2”	40	48.9	40.1	33.2	27.2	5.54	7.80	11.12	12.5	32.0
2”	50	61.2	51.7	42.1	37.4	6.04	9.50	12.12	16.0	41.0
2-1/2”	65	73.9	61.2	–	–	7.62	–	–	16.0	43.0
3”	80	89.9	76.4	–	–	8.30	–	–	16.0	44.5
4”	100	115.5	100.7	–	–	9.35	–	–	16.0	48.5
