Features:

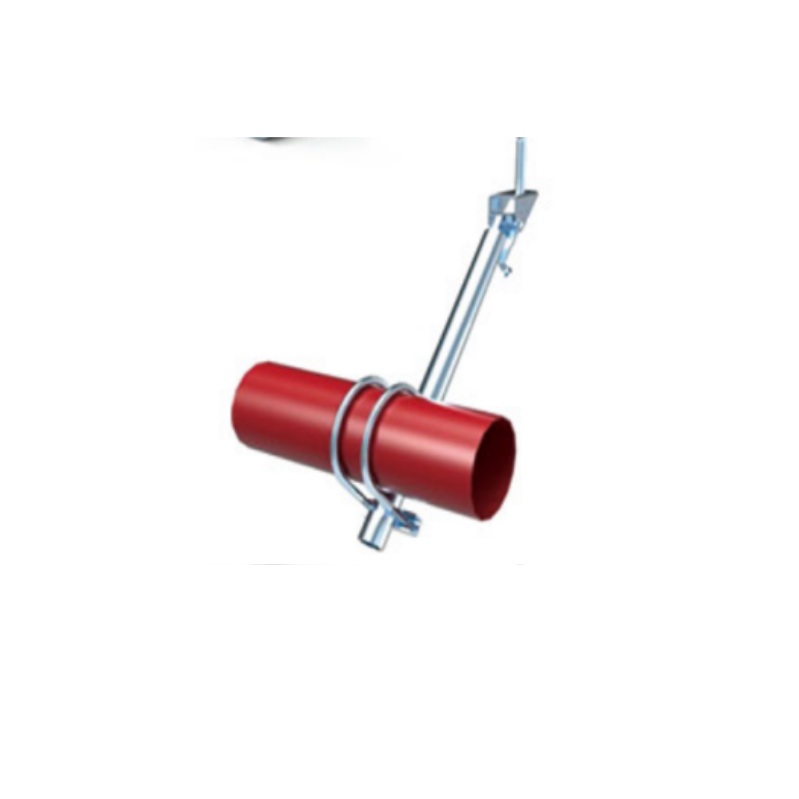

Function: Designed for bracing pipe against sway and seismic disturbance.The pipe attachment component of a sway brace system used in conjunction with a UTT Manufacturing structural attachment fitting.and joined together with a bracing pipe element forms a complete sway brace assembly.Sway brace assemblies are

intended to be installed in accordance withNFPA13and the manufacturer’s installation instructions.

Type:Sprinkler Pipe Sch 10,Sch 40,GB/T3091,IS G3454

Size:One size fits braced pipe up to 8””with 1/2’bolt hole for structure.

Material:Carbon steel

Finish:Electro-galvanized

Chat Now

Product details

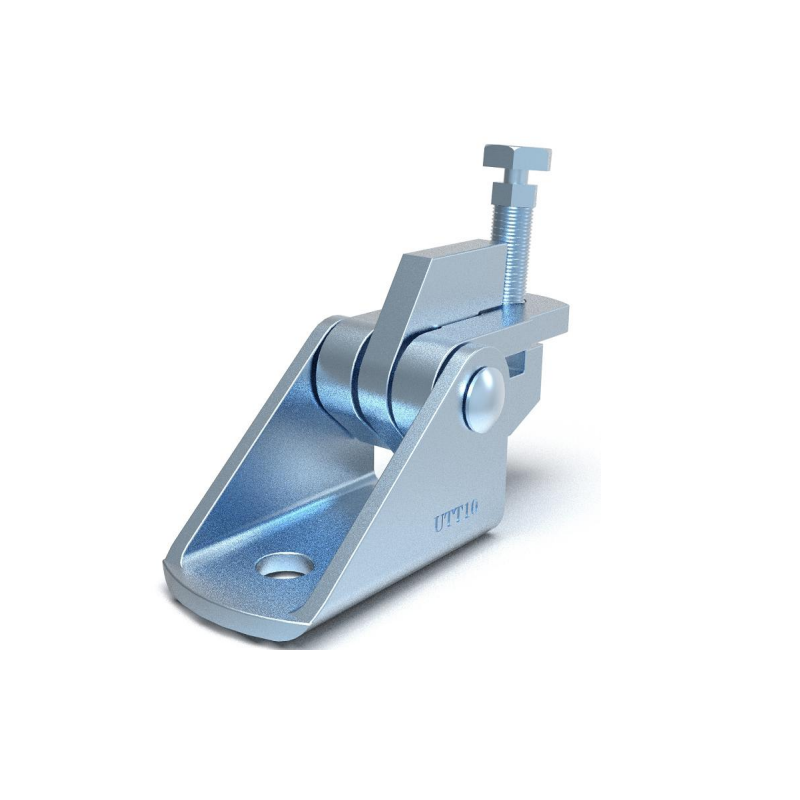

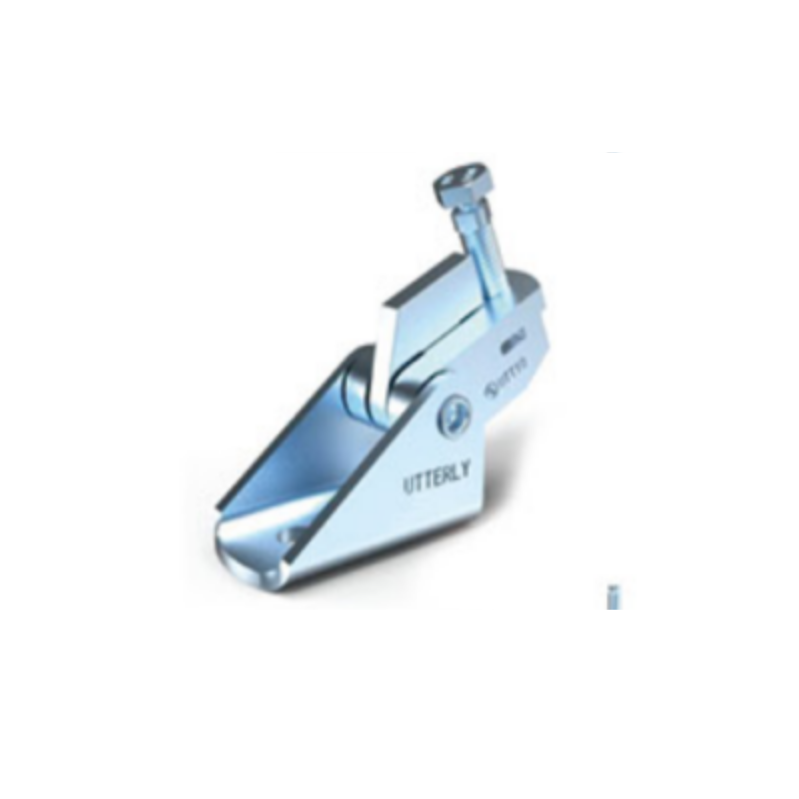

Structure attachment UTT10 is a key component used in the field of structural design and engineering, specifically used to connect different structural units or materials together safely and reliably.

UL Maximum Design Load
Brace Member	lbs.	kN	Wt.Each

			lb.	kg
1″ SCH40 pipe	1885	(8.38)	1.54	(0.7)

FM Maximum Design Load
Brace Member	Horizontal load ratings installation angle 30°-44°		Horizontal load ratings installation angle 45°-59°		Wt.Each

	lbs.	kN	lbs.	kN	lb.
1″ SCH40 pipe	1490	(6.62)	1980	(8.80)	1.54
