Standard: EN 10242 / BS EN
Material: Malleable iron
Surface Treatment: Electro-galvanized / Hot-dip galvanized / Black
Working Pressure: 1.6MPa ~ 2.5MPa
Temperature Range: -20℃ ~ 200℃
Thread Type: BSPT / NPT
Applicable Media: Water, hot water, oil, gas, steam, fire water, etc.
Malleable Iron Flange can hold different pipe parts together and direct the gas and liquid movement.

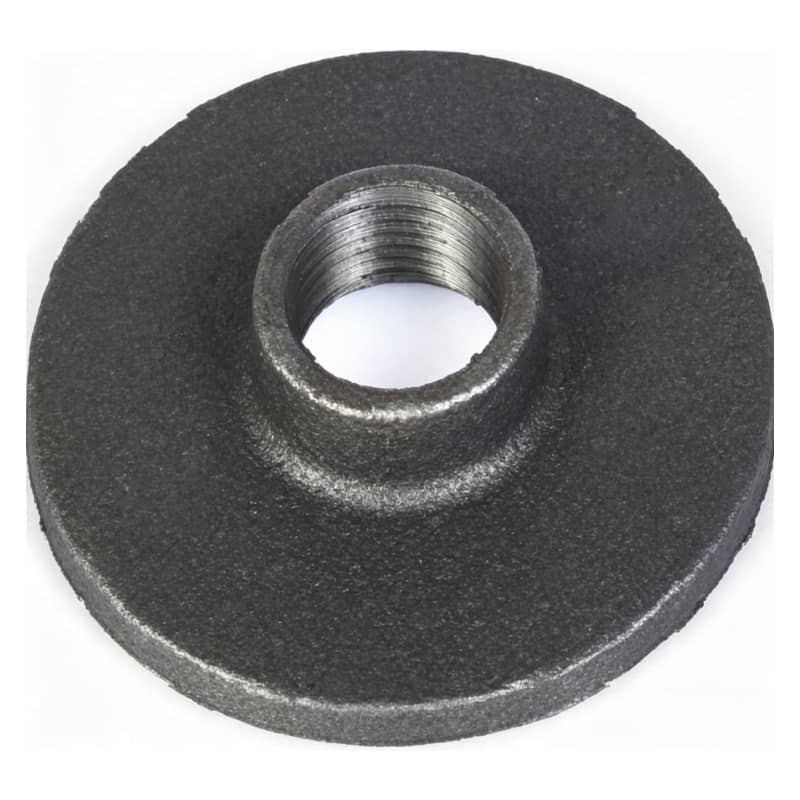

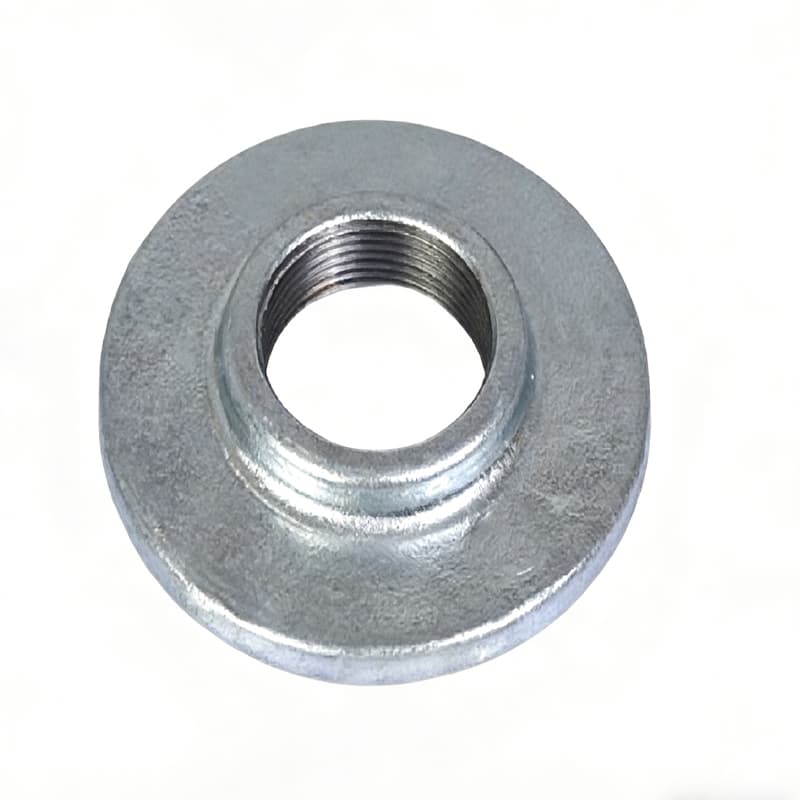

This product is a threaded Flange Fig 321PW BSPT made of malleable iron, manufactured in strict accordance with BS EN standards. It is mainly used for rigid connection between pipelines and valves, pumps, equipment and piping systems, with stable structure and reliable sealing, suitable for low to medium pressure piping systems such as water, oil, gas, steam and fire fighting.
Made of high-quality malleable iron with high-temperature annealing treatment, it features good toughness, impact resistance and resistance to brittleness. With high-precision threads for tight fit and flat Flange Fig 321PW BSPT face, it ensures easy installation and stable pressure bearing. Available in electro-galvanized, hot-dip galvanized or black finish with excellent corrosion resistance and long service life.
Complete sizes from DN15(1/2″) to DN100(4″) are widely used in fire fighting, water supply & drainage, HVAC, industrial pipelines, gas and other engineering applications.
| SIZE | A (MM) | B (MM) | PCS/CTN. | |
| 1/2” | DN15 | 13.5 | 4.5 | 120 |
| 3/4” | DN20 | 16 | 5 | 100 |
| 1” | DN25 | 18 | 5.5 | 60 |
| 1 1/4” | DN32 | 15 | 6 | 40 |
| 1 1/2” | DN40 | 16 | 7 | 40 |
| 2” | DN50 | 18 | 8 | 30 |
| 2 1/2” | DN65 | 20 | 9 | 16 |
| 3” | DN80 | 22 | 10 | 12 |
| 4” | DN100 | 24 | 11 | 10 |
Fire fighting systems: Connection between fire pipes and fire hydrants, pumps, alarm valve sets
Water supply & drainage: Main pipe connection to valves, water meters, filters
HVAC & hot water: Inlet and outlet connections for boilers, heat exchangers, circulation pumps
Industrial pipelines: Compressed air, lubricating oil, low-pressure steam pipelines
Municipal and factory pipe networks: Pipeline fixing, equipment docking, system maintenance
Compatibility:
Can be matched with galvanized steel pipes, malleable iron fittings, valve Flange Fig 321PW BSPTs and equipment Flange Fig 321PW BSPTs
Used with Flange Fig 321PW BSPT gaskets, bolts and nuts for sealing and fastening
Installation Guide:
Inspect Flange Fig 321PW BSPT for sand holes, cracks, deformation and intact threads
Wrap male pipe thread with PTFE tape or apply sealant, then screw into Flange Fig 321PW BSPT
Align mating Flange Fig 321PW BSPT and install sealing gasket
Tighten bolts diagonally and evenly to avoid deflection and leakage
Maintenance Tips:
Regularly check joints for leakage, looseness and corrosion
Touch up with anti-rust paint in humid or outdoor environments
Replace immediately if cracks, serious corrosion or deformation occur
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
