Certification: UL certification/ FM approval
Standard: Manufactured according to ASME B16.3, B16.14 (Malleable iron castings) or EN 10242 standard.
Temperature: -20℃ to 200℃.
Working pressure: 1.6 MPa to 2.5 MPa (approx 232 psi – 362 psi).
Surface Finish: Hot-dip galvanized / Electro-galvanized / Yellow-zinc plated / Black.
Thread Standard: Compliant with ISO 7/1 (BSPT) or NPT standard.
Malleable iron service tee has a T shape to get its name. The branch outlet has the same size with female thread to one main outlet, and another main outlet is same size but with male thread. It is used to create a branch pipeline to 90 degree direction.

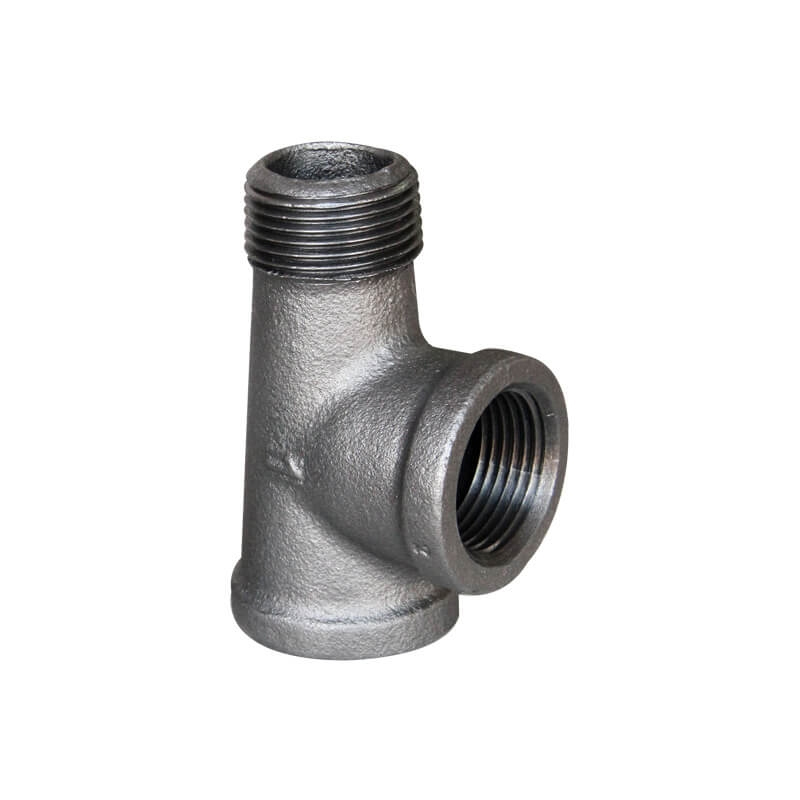

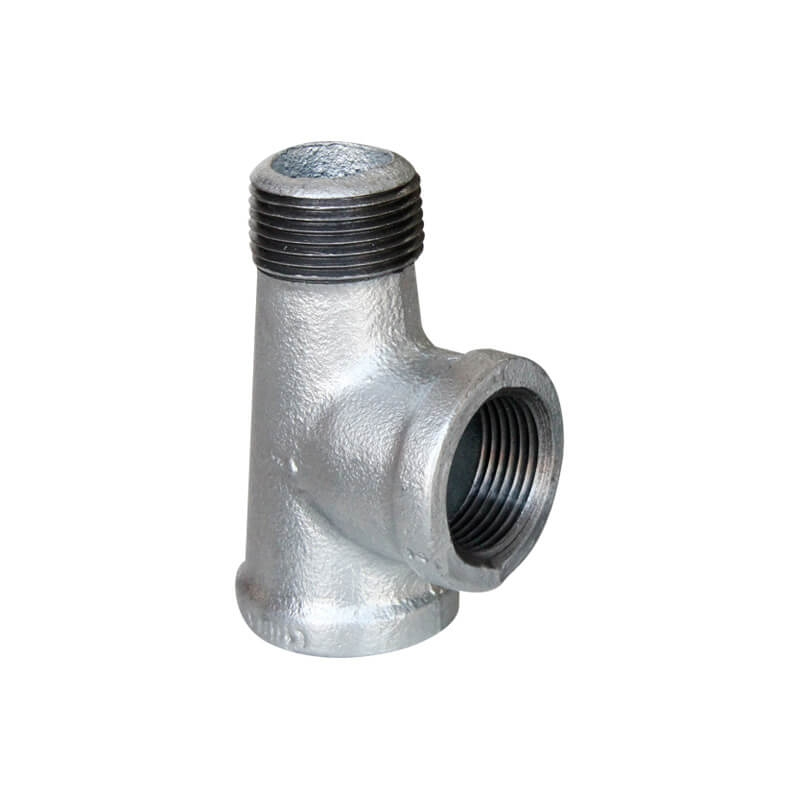

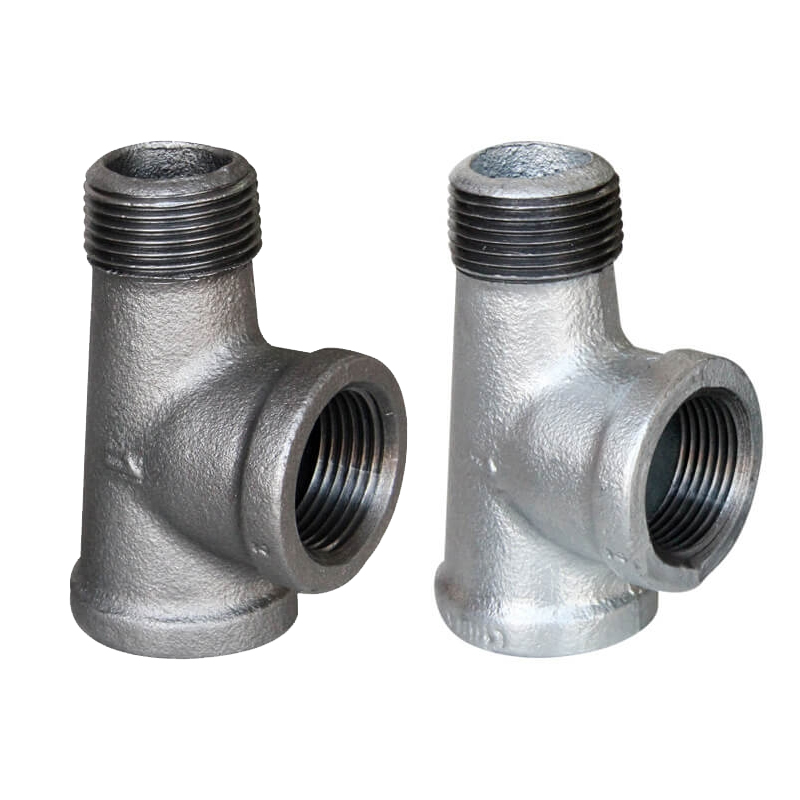

This product is a malleable iron threaded street Tee Fig 134 BSPT, a key pipe fitting used for branching, turning and connecting in pipeline systems. It adopts one male end and two female ends, which can directly realize Tee Fig 134 BSPT connection without additional adapters, ensuring smooth branching transmission of media such as water, oil, gas and steam.
Are you looking for a pipe fitting that is easy to install, ensures a tight pipeline system while offering high strength and corrosion resistance? Our malleable iron street Tee Fig 134 BSPT is made of high-quality material through high-temperature annealing forging, resulting in a dense internal structure capable of withstanding working pressures up to 1.6Mpa (16kg), effectively solving the leakage risk at pipe branches. The surface is treated with uniform anti-rust coating, which is continuous and burr-free. The integrated structure has higher strength and quicker installation, greatly improving construction efficiency and service life of the product.
The product is available in various nominal diameters from DN15 (1/2″) to DN100 (4″) and offers multiple surface treatment options such as natural and yellow-zinc plated. It can be widely used in various working conditions including fire protection, water supply, gas, chemical industry, and plumbing installation.
| SIZE | A (MM) | B (MM) | |
| 1/2” | DN15 | 28.5 | 41.5 |
| 3/4” | DN20 | 33.5 | 48 |
| 1” | DN25 | 38 | 54.5 |
| 1 1/4” | DN32 | 44.5 | 62 |
| 1 1/2” | DN40 | 49.5 | 68.5 |
| 2” | DN50 | 57 | 83 |
Intended Use:
Fire Protection Systems: Used for branching connection of fire sprinkler networks, especially suitable for narrow space scenarios, suitable for wet or dry fire protection pipe networks.
Commercial Buildings: Applied in air conditioning pipelines, water supply and drainage systems in banks, hotels, and shopping malls.
Industrial Plants: Suitable for industrial pipelines conveying non-strongly corrosive media such as steam, coal gas, and compressed air.
Residential Plumbing: Used for water circuit modification in home decoration, connecting terminals like water heaters and faucets to realize pipeline branching.
Compatibility:
Perfectly compatible with galvanized sTee Fig 134 BSPTl pipes and black sTee Fig 134 BSPTl pipes.
Must be used with PTFE tape or oiled hemp for thread sealing.
Can be used together with gate valves, globe valves, elbows, unions, and other fittings of the same specification.
1.Inspection: Before installation, check the internal and external surfaces of the Tee Fig 134 BSPT for sand holes and cracks, ensure threads are complete without breakage.
2.Cleaning: Remove iron chips and dirt from the pipe ends.
3.Sealing: Wind an appropriate amount of PTFE tape clockwise (recommended 15-20 turns) or apply oiled hemp onto the male thread of the Tee Fig 134 BSPT.
4.Tightening: Screw the Tee Fig 134 BSPT and the pipe by hand, then tighten with a pipe wrench. Use moderate force to avoid cracking the fitting. It’s recommended to secure the pipe near the Tee Fig 134 BSPT with a pipe clamp to reduce vibration.
1.Inspection Cycle: It is recommended to visually inspect the Tee Fig 134 BSPT every six months, especially at threaded connections, checking for signs of rust or leakage.
2.Cleaning Method: Wipe the surface dust with a clean, damp cloth. For rust removal, use a wire brush to clean and then apply anti-rust paint.
3.Replacement Cycle: Generally, if there is no mechanical damage or severe corrosion, it can be used for over 10 years. If the Tee Fig 134 BSPT shows sand holes, deformation, or cracks due to freezing, replace it immediately.
Product List:
STee Fig 134 BSPTl Pipe: Match with standard galvanized sTee Fig 134 BSPTl pipes of the same specification (e.g., DN25, DN50).
Pipe Hangers/Supports: Provide matching U-bolts, hanger rods for fixing pipeline direction.
Other Fittings: Equal Tee Fig 134 BSPTs, reducing Tee Fig 134 BSPTs, 90° street elbows, unions, full thread nipples.
Sealing Materials: High-quality PTFE tape or liquid pipe sealant.
Combining these with our hot-dip galvanized sTee Fig 134 BSPTl pipes and seismic bracing systems builds a sturdy, durable, and code-compliant complete pipeline system. This ensures the pipeline does not detach and fluid delivery is uninterrupted during a fire or emergency.
OEM is available. We can customize the product according to your specific requirements, including logo printing and packaging design.
The MOQ is 500 pieces. For customized products with special sizes or surface treatments, the MOQ may vary.
After order confirmation and receipt of the advance payment, we will arrange production. Generally, the products can be ready for shipment within 15-20 working days. Once dispatched, we will notify you and provide all necessary documents for customs clearance.
All products are 100% new and undergo strict quality inspections, including pressure testing and dimensional checks, before delivery. We use sturdy wooden crates or cartons to ensure the products are well-protected during transportation.
Yes, we provide detailed installation instructions in English and other major languages. Our technical support team is also available for online consultation and guidance if needed.
