Selecting the appropriate reducing fitting starts with interpreting its dimensions accurately. A Malleable Iron Bushing Fig 241 links a larger threaded opening to a smaller pipe or component within a confined area. Purchasers sometimes mix up the two sizes. They might view DN as a precise millimeter measurement. Alternatively, they might ignore the overall fitting dimension. This manual clarifies the primary terms found in a Fig 241 size chart. It also highlights what you need to verify before placing an order.

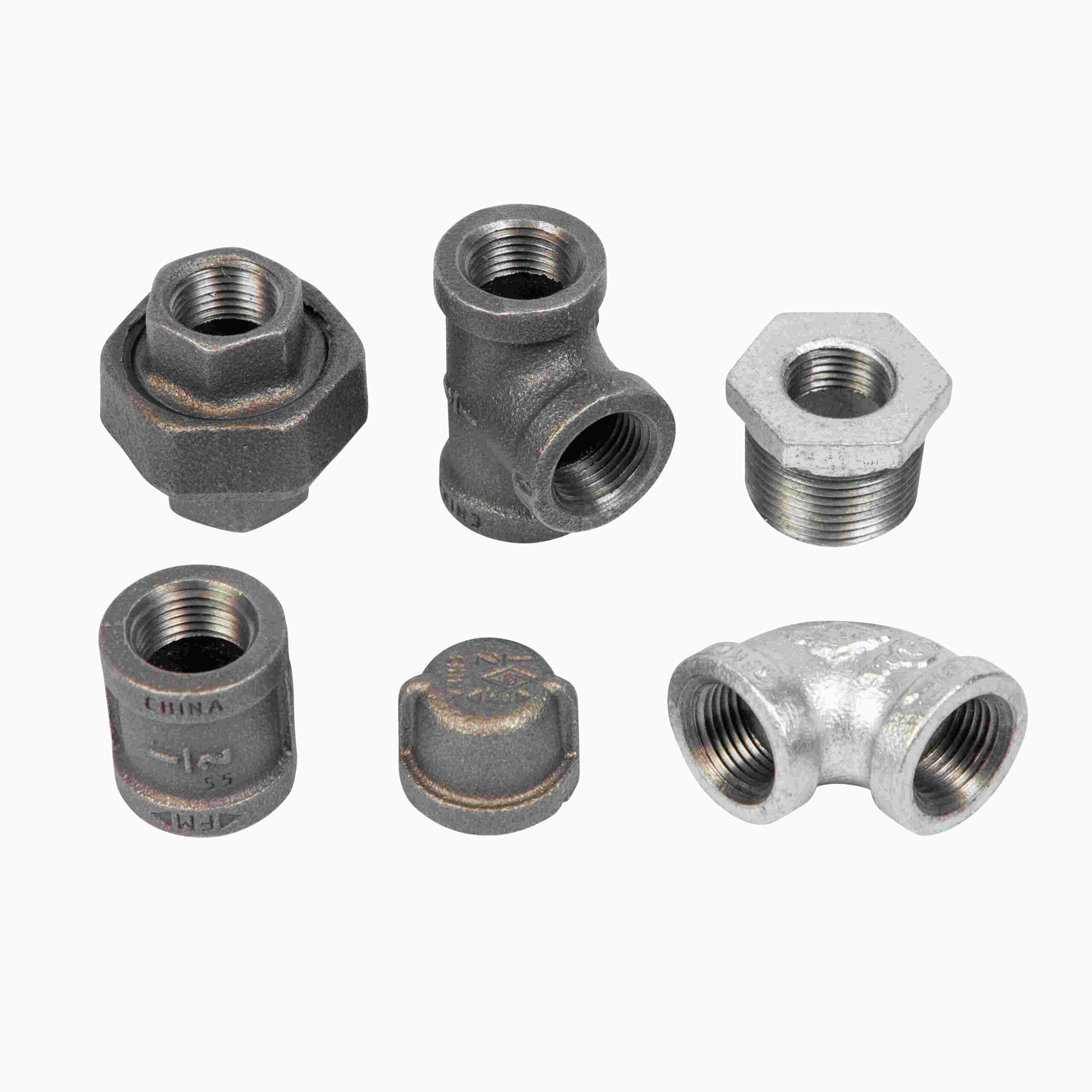

What Is a Malleable Iron Bushing Fig 241?
Prior to examining the chart, you should determine the connection style of the fitting. Fig 241 operates as a reducing fitting. It is not an equal-size connector.
How Is the Connection Arranged?
A Fig 241 bushing features a larger male thread on the exterior. It also has a smaller female thread on the interior. This component fastens into a larger female-threaded fitting, valve, manifold, or equipment port. Consequently, it forms a smaller female outlet.
FLUID TECH’s ASTM A197 Fig 241 comes in 150LB and 300LB pressure classes. You can choose between NPT or BSP threads. The available finishes include black, electro-galvanized, or hot-dip galvanized. This fitting works well in fire sprinkler, water, HVAC, compressed-air, gas, and various other appropriate low-pressure piping systems.
How Do You Read a Size Such as 3/4 × 1/2 Inch?
These two digits represent distinct connections. Interpreting them in the proper sequence helps avoid a common buying mistake.
What Does the First Number Mean?
The initial number indicates the larger nominal size of the male external thread. For instance, in a 3/4 × 1/2-inch bushing, the 3/4-inch male thread fastens into a 3/4-inch female connection.
What Does the Second Number Mean?
The subsequent number denotes the smaller nominal size of the female internal thread. This identical bushing supplies a 1/2-inch female outlet. This outlet accommodates a compatible pipe, nipple, gauge connection, or similar component.
What Does a Typical Size Chart Show?
| Inch Size | DN Reference | A (mm) |
| 3/8 × 1/8 | DN10 × DN6 | 16.3 |
| 1/2 × 1/4 | DN15 × DN8 | 19 |
| 3/4 × 1/2 | DN20 × DN15 | 21.6 |
| 1 × 3/4 | DN25 × DN20 | 25.5 |
| 1 1/2 × 1 1/4 | DN40 × DN32 | 29 |
These specific figures originate from FLUID TECH’s product chart. You should utilize the most recent approved drawing. This is important because dimensions can differ based on the class, pattern, or manufacturer.
What Do NPS and DN Mean?
NPS and DN serve as nominal pipe-size systems. They assist in pairing compatible fittings. However, neither system provides a direct measurement of the thread diameter.
What Is NPS?
NPS stands for Nominal Pipe Size. It is stated in inches. A 1/2-inch NPS connection represents a standardized trade size. It is not an exact measured diameter. Furthermore, buyers need to check if the thread is NPT, BSPT, or BSPP.
What Is DN?
DN signifies nominal diameter. It employs a metric designation. People commonly refer to NPS 1/2 as DN15. Similarly, NPS 3/4 is typically known as DN20. DN functions as a reference. It does not indicate an exact bore or outside diameter.
Which Dimensions Should You Check?
The nominal size guarantees connection compatibility. Meanwhile, the physical dimensions indicate if the fitting will fit within the designated installation space.
What Does Dimension A Represent?
On a Fig 241 drawing, dimension A usually shows the main overall height or axial length. This measurement becomes crucial when the bushing sits near a wall, valve body, instrument, or nearby fitting.
What Else Should Be Verified?
You must examine the thread standards, pressure class, material, and finish. Additionally, check the service temperature, medium, wrench clearance, and necessary documents.
Examine the bushing for any cracks, deformation, or damaged threads. You should clean the threads and apply an appropriate sealant. Then, tighten the fitting through the hex section without using excessive force. Finally, perform the mandated leakage test.
How Can You Avoid Ordering Mistakes?
A thorough inquiry assists in avoiding mismatched threads, installation delays, leakage, and product returns. This is particularly true when inch and metric terms show up together.
What Should an RFQ Include?
You need to specify the complete size pair, figure number, material standard, and thread type. Also, include the pressure class, finish, quantity, packaging, and document requirements. When dealing with large orders, ask for an approved drawing. Make sure to verify the critical dimensions before manufacturing begins.
A precise description might look like this: Malleable Iron Bushing Fig 241, 1 × 3/4 inch, ASTM A197, NPT, Class 150, hot-dip galvanized.
Why Choose FLUID TECH as a Fig 241 Supplier?
A trustworthy supplier needs to offer consistent specifications and clear drawings. They should also provide quality checks, export packaging, and reliable technical support.
What Can FLUID TECH Provide?
FLUID TECH PIPING SYSTEMS (TIANJIN) CO., LTD. started its operations in 2018. The company operates foundries and pipe-fitting processing plants. It delivers fire-protection and piping products to construction clients worldwide. The company’s Fig 241 selection includes various reductions, pressure classes, thread options, and finishes.
Conclusion
For a Fig 241 size like 3/4 × 1/2 inch, the initial value points out the larger male thread. The second value highlights the smaller female thread. NPS and DN act as nominal references. On the other hand, dimension A is a physical characteristic important for installation clearance. Always verify the thread standard, pressure class, material, finish, and service conditions prior to making a purchase.
FAQs
Is DN15 Exactly 15 mm?
No, it is not. DN15 serves as a nominal designation. People frequently pair it with NPS 1/2. This term does not imply that the thread diameter, bore, or every fitting dimension measures exactly 15 mm.
Can an NPT Bushing Connect to a BSP Fitting of the Same Nominal Size?
You should never assume this. NPT and BSP threads vary in their profile and specification. The parts might start to screw together. However, they can still experience poor engagement or leakage.
Which Size Comes First When Ordering Fig 241?
You must state the larger male-thread size first. Then, provide the smaller female-thread size. For instance, 1 × 1/2 inch indicates a 1-inch male connection that reduces to a 1/2-inch female connection.
