A branch connection can be created with a full grooved tee or with a mechanical tee installed through an opening in the existing main pipe. Both solutions can form a 90-degree branch in a compatible grooved piping system, but they change the amount of pipe cutting, the number of joints, the installation sequence, and the information required for procurement. The correct choice depends on whether the main is new or already installed, the run and branch sizes, available space, approved product data, and the project specification. This comparison helps contractors, distributors, and buyers define the branch fitting before requesting a quotation.
What Is a Grooved Mechanical Tee?

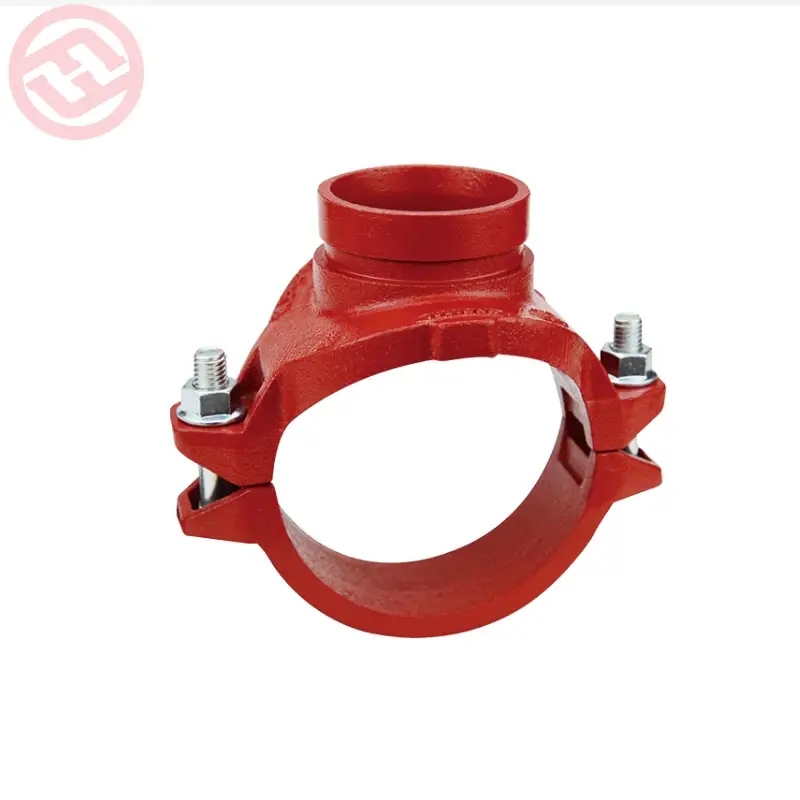

A grooved mechanical tee creates a branch by using a prepared hole in the wall of the main pipe. The fitting body aligns with that opening, a gasket seals around the hole, and the assembly is secured around the pipe. The IF Mech Tee Grooved Outlet shown by Fluid Tech is a ductile iron branch fitting for compatible piping systems. Because it connects to the side of the run, it can reduce the need to cut the main into separate sections, but it also makes hole preparation and sealing-surface inspection central to the installation.
What Is a Grooved Equal Tee?
A grooved equal tee is a full-body fitting with three openings of the same nominal size. It becomes part of the pipeline run and connects to grooved pipe sections through compatible couplings. Fluid Tech’s IF Grooved Equal Tee is presented as a ductile iron grooved fitting for fire protection, waterworks, HVAC, plumbing, gas, and irrigation applications. Unlike a mechanical tee, the full tee requires the main pipe layout to accommodate the complete fitting body and its connections.
How Do Their Installation Methods Differ?
The main difference is how the branch enters the run. A mechanical tee depends on a correctly located hole and a gasketed housing around the existing pipe. A grooved equal tee replaces a section of the run and joins to pipe ends at both sides. This distinction affects fabrication, access, inspection, and the number of connection points that must be planned.
What Does a Mechanical Tee Require at the Pipe Wall?
The installer must mark the branch location, prepare the specified hole, remove burrs and loose material, and clean the gasket seating area. The locating collar must align with the opening, and the hardware must be tightened in accordance with the applicable installation instructions. A damaged or dirty sealing area can prevent the gasket from seating correctly. Buyers should therefore confirm the required hole dimensions and obtain the current installation document for the exact product rather than relying on a generic tapping practice.
What Does a Full Grooved Tee Require in the Run?
A full grooved tee requires properly prepared pipe ends, compatible couplings, sufficient space for the fitting body, and accurate pipe length planning. The run is interrupted at the fitting, so both sides must align with the tee. On new installations, this can provide a clear and conventional branch layout. On a retrofit, however, removing or shortening existing pipe may add work. The chosen configuration should follow approved drawings and allow practical access for assembly and inspection.
Which Option Fits New Construction or Retrofit Work?
A full grooved equal tee is often easier to plan when the piping layout is being fabricated from the beginning and the branch is the same size as the main. A mechanical tee may be attractive when adding a smaller branch to an existing main without separating the full run. These are planning tendencies, not universal rules. The decision must also consider pipe size, branch size, wall suitability, structural clearance, drainage, hydraulic design, approval requirements, and the manufacturer’s permitted configurations.
What Should Buyers Compare Before Ordering?
Start with the approved piping drawing and identify the main size, branch size, pipe outside diameter, fitting type, connection type, surface treatment, quantity, and required certificates. For a mechanical tee, include the outlet style and hole-cutting requirement. For a full tee, confirm whether the branch is equal or reducing and account for the required couplings. Fluid Tech’s grooved pipe fittings range includes tees, reducers, elbows, caps, and other fitting types, which helps buyers keep the selected branch component within one compatible system family.
Why Work With Fluid Tech for Grooved Branch Fittings?
FLUID TECH PIPING SYSTEMS (TIANJIN) CO., LTD. supplies pipeline fluid system products, including grooved mechanical tees, full grooved tees, couplings, and related fittings. The company can help buyers organize an inquiry around fitting type, run and branch sizes, connection standard, coating, quantity, and required documentation. This supplier coordination supports a clearer quotation, while final hydraulic design, product approval, and installation remain the responsibility of the project’s qualified parties.
Conclusion
Choose a grooved mechanical tee when the approved design permits a branch through a prepared hole in the main pipe and the installation team can control hole quality and gasket seating. Choose a grooved equal tee when the branch and run are the same size and a full-body fitting fits the planned pipe layout. Neither product should be selected from the word tee alone. The RFQ should define the main and branch sizes, pipe dimensions, fitting configuration, coating, connection requirements, quantity, and documentation so the supplier can quote the correct branch solution.
FAQs
Can a Mechanical Tee Be Installed Without Cutting the Main Pipe Apart?
It normally creates the branch through a prepared hole in the pipe wall, so the main does not need to be separated into two pipe sections. The exact procedure must follow the approved product instructions.
Is a Grooved Equal Tee Suitable for a Smaller Branch?
An equal tee has the same nominal size at all three openings. When the branch is smaller than the run, the project may require a reducing tee, a mechanical tee, or another approved arrangement.
What Information Is Needed for a Grooved Tee Quotation?
Provide the main and branch sizes, pipe outside diameter, tee type, groove or outlet connection, surface treatment, quantity, applicable standards, and required certificates or submittal documents.
