A ring hanger may look like a simple component, but its finish affects how well the carbon steel surface suits the installation environment and the buyer’s specification. Pre-galvanized and electro-galvanized finishes both use zinc to protect steel, yet they are produced by different processes and should not be selected by appearance alone. For procurement teams, the practical task is to match the finish to indoor conditions, exposure level, project documents, required approvals, and expected handling. This guide explains the difference in clear commercial terms and shows what information should be included in a ring hanger inquiry.
What Is a Pre-Galvanized Ring Hanger?

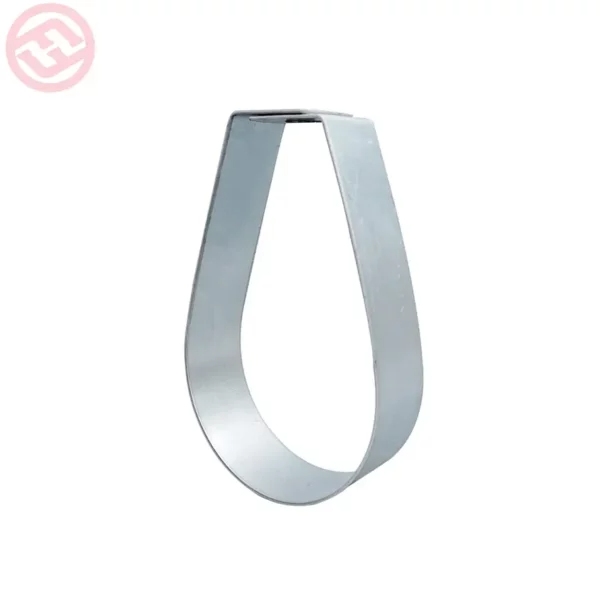

Pre-galvanized steel is coated before the sheet or coil is fabricated into the finished hanger. The zinc-coated material is then cut and formed. This production route can provide consistent coverage on the original sheet surfaces, while cut edges and fabrication areas may not have the same continuous coating as the flat material. Zinc near exposed steel can offer sacrificial protection, but the environment and fabrication details still matter. Fluid Tech lists pre-galvanized as one available finish for its carbon steel ring hangers, which are designed for suspending non-insulated stationary pipelines.
What Is an Electro-Galvanized Ring Hanger?
Electro-galvanizing deposits zinc on the steel through an electrolytic process. It is commonly associated with a smooth, uniform appearance and is often considered for indoor, relatively dry service. The coating system should still be evaluated against the actual environment because moisture, chemicals, condensation, and outdoor exposure can change corrosion risk. Fluid Tech’s local product information identifies electro-galvanized as an available finish for ring hangers, alongside pre-galvanized. Buyers should state the requested finish rather than allowing the choice to remain implicit.
How Do the Two Finishes Differ in Procurement?
The most useful comparison is not simply which surface looks brighter. Procurement decisions should consider how the zinc is applied, which areas are coated, the intended environment, the project specification, and the required documentation. Both finishes can be appropriate when they match the approved design, but neither should be promoted as a universal solution for every atmosphere.
How Does the Coating Process Affect Coverage?
Pre-galvanizing coats the sheet or coil before forming, so later cuts and fabrication details require attention. Electro-galvanizing applies zinc by electrodeposition and can create a smooth surface on the finished component. These process differences may influence coverage around edges, holes, threads, and formed areas. Buyers should request the finish named in the project documents and ask for the applicable product data instead of estimating coating performance from photographs or color.
Which Environment Should Guide the Choice?
Indoor dry service is different from a humid plant room, wash-down area, coastal environment, or outdoor installation. The pipe hanger product range includes multiple support types and finishes, but the selected hanger must match the actual exposure and pipeline arrangement. If the environment is more severe than normal indoor service, the qualified project team should define whether another finish, coating, material, or protective measure is required. A quotation should not replace that engineering decision.
What Other Factors Matter Beyond the Finish?

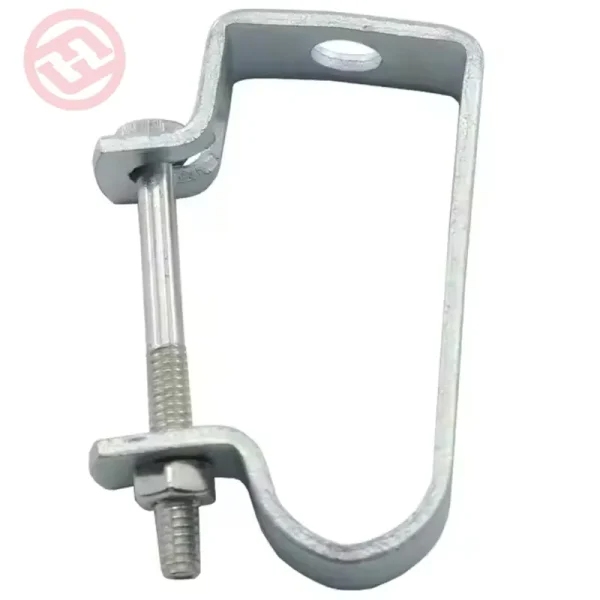

Finish is only one part of ring hanger selection. The product must match the pipe size, outside diameter, hanger rod connection, support arrangement, load requirement, and installation location. Fluid Tech’s product page lists carbon steel ring hangers in sizes from 1/2 inch to 8 inches and references UL 203 and MSS SP-58/69 Type 10 for the listed product. The local knowledge file also describes the ring hanger as adjustable after installation through its insert nut. These details must be confirmed against the current product data and project submittal.
What Should a Ring Hanger RFQ Include?
A clear request for quotation should identify the ring hanger type, nominal pipe size, required finish, quantity, hanger rod requirement, referenced standard, intended environment, and required certificates or submittal documents. If the pipeline is insulated, exposed to unusual corrosion conditions, or subject to a special support design, state that information clearly. The company’s pipe hanger selection guide provides broader context on clamps and hangers, while the approved project documents remain the controlling source for spacing, load, attachment, and installation requirements.
Why Source Ring Hangers From Fluid Tech?
FLUID TECH PIPING SYSTEMS (TIANJIN) CO., LTD. supplies pipeline fluid system products and pipe support accessories, including carbon steel ring hangers with pre-galvanized and electro-galvanized finish options. The company can help buyers organize practical inquiry details such as size, finish, quantity, standards, and documentation. This supplier support can make quotations easier to compare, while final product approval and installation decisions remain with the responsible project parties.
Conclusion
Pre-galvanized and electro-galvanized ring hangers both use zinc protection, but their coating processes and coverage characteristics differ. The correct choice depends on the specification, indoor or exposed environment, product configuration, and required documentation. Buyers should avoid selecting a finish only by appearance or price. A complete RFQ that states hanger type, size, finish, quantity, environment, standards, and submittal requirements gives the supplier a reliable basis for quotation and helps reduce revisions later in the project.
FAQs
The following questions address common purchasing concerns about galvanized ring hanger finishes. Project specifications and approved submittals should always take priority over general guidance.
Is Pre-Galvanized the Same as Electro-Galvanized?
No. Pre-galvanized material is zinc coated before the hanger is formed, while electro-galvanizing deposits zinc through an electrolytic process. The resulting coverage and surface characteristics are not identical.
Which Finish Is Better for Outdoor Ring Hangers?
Neither option should be assumed suitable for every outdoor condition. Exposure severity, coating requirements, local environment, and project specifications should be reviewed by the qualified project team before selection.
What Information Should Be Sent to the Supplier?
Provide the ring hanger type, pipe size, finish, quantity, rod requirement, intended environment, referenced standard, and required approval or inspection documents. Note insulation and unusual exposure conditions.
