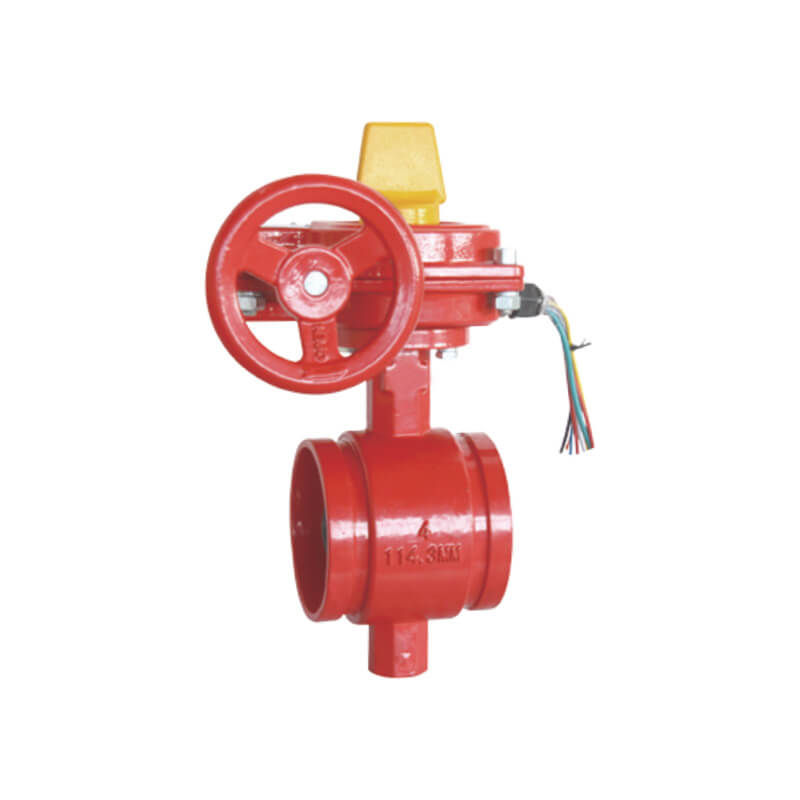

Ask for a fire valve quotation and there may be six approval names beside the price. Before requesting six certificates, read what the job specifies. An enquiry should name the required route. For product approval, UL Listed and FM Approved are familiar names. Canadian coverage is identified by C UL. VdS operates another fire-protection route. NFPA belongs in the installation specification. CE under CPR needs to be read against the European legislation covering that product. The names matter, but the order line matters more. On a grooved butterfly valve with tamper switch enquiry, include the monitoring arrangement as well as the valve. Other options can be compared in the fire valve category before a model is chosen.
Why should a buyer separate approval from installation rules?
Suppose the quotes agree on diameter and ends, but only one includes the monitored actuator. They are not quotes for quite the same item. Look at the certificate before making a price comparison. What assembly is described there? What options were included? Keep those answers beside the offer. Supervision and inspection duties are a separate check against the installation specification. Keep any unanswered question on the enquiry. It should not disappear when the purchase order is issued.
What does UL Listed mean for a fire valve?
A UL Listed valve has been evaluated by UL Solutions using representative samples and the requirements for its product category. To use that evidence, find the model in the listing file. Read past the model name. The listed size, pressure and accessory arrangement need to agree with the offer, too. A change of switch is worth querying in writing: is that version within the listed construction? The file reference is needed to settle that question on the offer. Ask for the reference and the matching drawing before accepting the substitution.
Where can an FM approval be checked?
An FM approval can be looked up in the Approval Guide. FM Approvals operates this certification program. Search using the manufacturer and offered valve description, then read the entry returned. If the entry names one trim or size range, do not quietly extend it to an option outside that scope. Also read the contract literally. A request for FM evidence needs an FM entry. A UL certificate might be useful additional information, but it is a different certificate. An alternative needs the project reviewer’s acceptance before it goes on the order.
What is the C UL mark?
C UL is UL’s Canadian certification indicator. A small brochure image can obscure the country identifier. Look it up in the record instead. A US-only listing will not answer a request for Canadian certification. Some products show both markets on a combined mark. Does the ordered model appear among those products? Exporting to a country does not establish its certification there. The returned papers need to identify Canadian coverage and state any limits on use.
Why is NFPA different from a valve listing?
NFPA is not a valve testing laboratory issuing product marks. For sprinkler installation, the familiar reference is NFPA 13; for the upkeep of water-based systems, including inspection and testing, it is NFPA 25. ‘NFPA compliant’ on an offer is therefore an incomplete answer. Compliant with what requirement, and which adopted edition? If the installation rules ask for a listed product, obtain evidence from the certifier. Then review the design and work on site. Having the right component papers does not finish those reviews.
How do CE and CPR apply in Europe?
For CE, first establish which European legislation covers the offered valve. The letters alone will not tell the buyer. CPR deals with construction products. Read the declaration for the offered item. What harmonized technical specification or assessment does it cite? Follow that reference to establish the route, checking the item description against the quotation as you go. The CPR transition does not move every product family to the same requirements at once. Consequently, a generic ‘latest CE certificate’ request can be less useful than asking which route applies to this product. None of that supplies UL or FM approval.
When should a valve’s VdS entry be requested?
Testing and certification of water extinguishing equipment are among VdS’s fire-protection activities. A contract naming VdS needs corresponding evidence. Request the certificate number, then check the offered description against the entry. Pay attention to variants and sizes, not just the manufacturer. Another certified item in the supplier’s range proves nothing about this valve. Until its scope is clear, the VdS requirement remains open on the enquiry.
What needs to match across the valve documents?
Read the offer beside the drawing. They need to name the same valve type, diameter, ends, pressure rating and operating arrangement. For a supervised valve, include the switch. Continue through the materials, temperature limits and intended service, checking each against the certificate where it is relevant. Put mismatches back to the supplier in writing. An option left open here may change the item that arrives on site.
How can the reviewer trace the quoted valve?
A reviewer should be able to take an order line and find its drawing, data sheet and installation instructions without guessing. Put the contract’s listing or certificate beside them. Add the applicable European declaration when that route is needed. If the certificate calls the valve something else, ask why. An apparent naming difference might be harmless, or it might mean the documents describe another model; the supplier needs to resolve it. Include the selected version’s maintenance information. The operator will need it when arranging monitoring and inspection.
What should a valve enquiry sent to Fluid Tech include?
FLUID TECH PIPING SYSTEMS (TIANJIN) CO., LTD supplies fire protection valves and support-system components for project buyers. Its fire protection pipeline system resources help place the component in its intended application. Ask Fluid Tech to return product data and the available certification documents against the quoted items. Review the scope for those items before treating an approval claim as confirmed.
Send Fluid Tech the valve schedule and destination market, together with the required approvals and monitoring arrangement. Size and quantity alone leave important options open. The consultant needs papers for the version actually offered, linked to its drawing. Acceptance is decided by the project reviewer or authority having jurisdiction. A catalog statement is evidence to examine, not that decision.
Conclusion
Before release, compare the assembly on the offer with the certificate and the job specification one last time. They should describe a consistent selection. UL, FM, C UL and VdS provide defined certification evidence. For the system rules, refer to NFPA. For the applicable European conformity route, examine the CE/CPR documents. Keeping each in its proper role helps expose a mismatch before dispatch.
FAQs
Is NFPA approval the same as UL Listing?
No. NFPA publishes standards. UL Listing is product certification. A job can call for both. Product evidence belongs to the listing. The installation review follows the relevant requirements of the adopted NFPA edition.
Does a UL Listed valve automatically have C UL certification?
Only if its certification includes Canada. Look for Canadian coverage in the certification entry or mark. A US-only listing cannot be presented as Canadian certification simply because the valve is available for export.
What should be checked first on a valve certificate?
Begin with the exact model and offered assembly. Then compare the size, rating, connection and accessories with the certificate scope. A recognizable logo is only the start of that check.
