Choosing the right pipe fittings for a malleable iron piping system is more than just matching the threads on the pipe and selecting a fitting from the correct pressure rating. The environment in which the piping system will be installed is the key to selecting the correct pipe fittings. Whether the system is for a fire sprinkler system, a potable water supply, a compressed air system, or a process plant, whether it is for a temporary installation or a permanent outdoor installation, the pipe fittings will be subjected to varying degrees of pressure, temperature, humidity, corrosion, and physical abuse. The pipe fittings chosen for the system must be paired with pipe fittings that are designed to withstand the specific conditions of the working environment. In addition to providing increased system reliability and safety, properly chosen pipe fittings can also reduce maintenance costs and extend the system’s useful life. This guide outlines the major factors that influence the selection of pipe fittings and will aid in the selection of the proper malleable iron pipe fittings for a variety of working environments.
What Factors Should Be Considered When Selecting Malleable Iron Pipe Fittings?
Choosing the correct malleable iron pipe fittings for your fire protection project and industrial systems is no easy task. The choice depends on a variety of mechanical, environmental and operating criteria in order to give a safe and reliable solution to meet your specific needs, in compliance with the required regulations and with a long service life.
Material Composition and Mechanical Properties

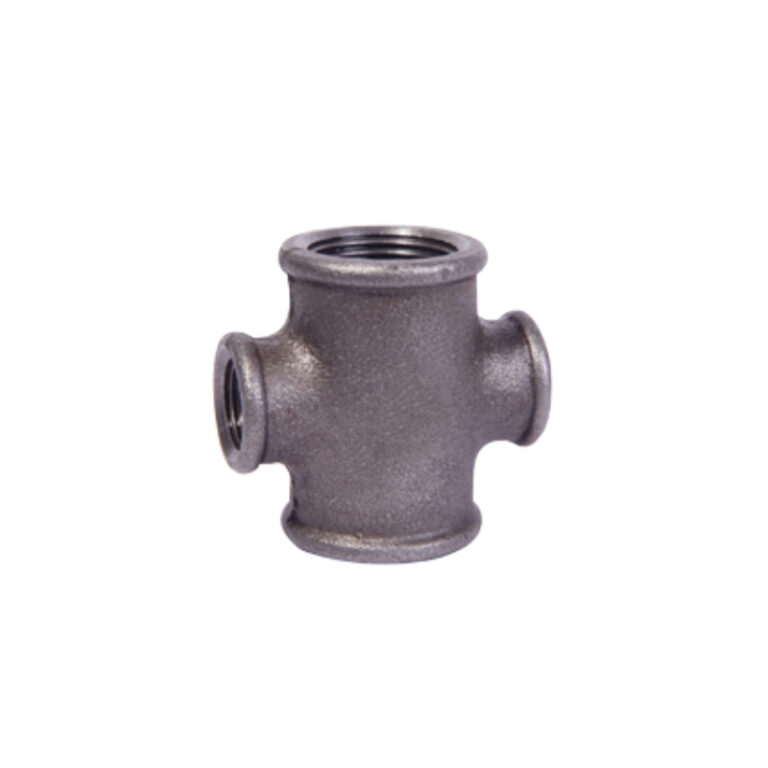

When selecting a material for your pipe fittings, it is essential for engineers to check several key factors, including the material’s tensile strength, ductility and impact resistance. Black heart malleable iron fittings, annealed at high temperatures, are exceptionally tough and strong. Such fittings such as the Malleable iron equal Cross Fig 180 beaded DIN are available from pipe fittings specialists. When purchasing these products it is crucial to ensure that they conform to either the ASTM or ISO approved standards in order to guarantee consistent quality throughout.

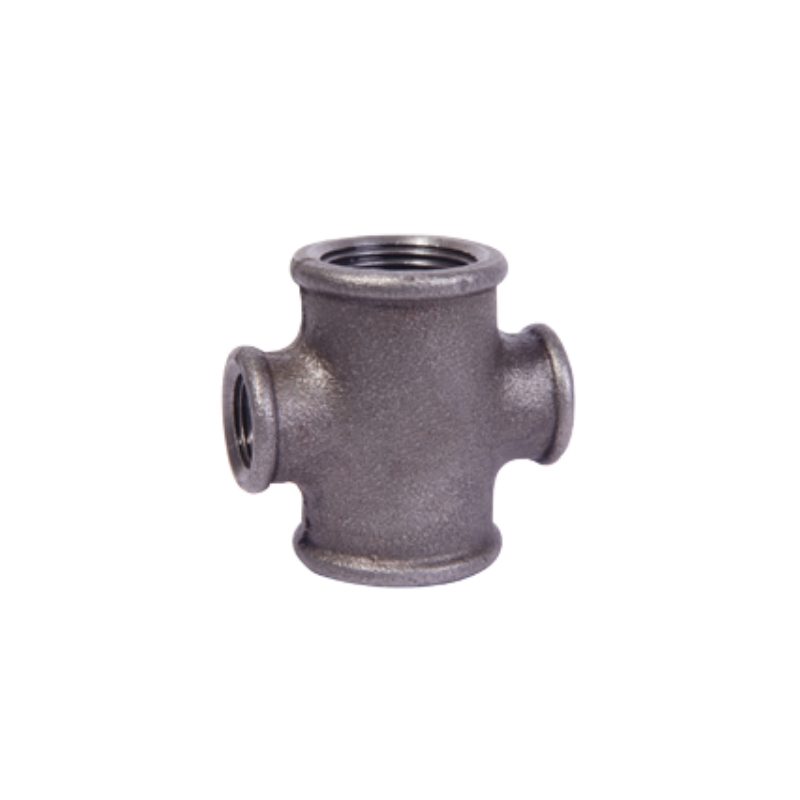

Surface finishing also plays a key role; options include black, electro-galvanized, or hot-dip galvanized coatings that enhance corrosion resistance. As noted in the product description of the Malleable iron reducing Cross Fig 180R beaded DIN, these surface treatments improve durability in humid or chemically active environments.
Pressure and Temperature Ratings
It is important that the pressure and temperature ratings for the Malleable iron fittings are adequate for the given service conditions. Typically Malleable iron is supplied as Class150LB or 300LB and suitable for operation within the temperature range -20 to +230°C. This temperature range is suitable for maintaining the dimensional stability of the fitting under thermal stress. For fire protection systems, where there are transient pressure waves, the fitting must be able to withstand the peak pressure and maintain its shape and not leak.
Compatibility with Piping Materials
When designing a pipe work system, the type of fitting thread used must be compatible with the type of pipe material used. For example, if using stainless steel or copper pipe then special care must be taken to avoid galvanic corrosion when making connections to steel threaded fittings by selecting the correct sealing compound. The use of uniform thread forms, as per DIN 2999 for example, can simplify the joint making process and ensures that all threaded connections are adequately sealed.
How Do Environmental Conditions Affect the Performance of Malleable Iron Pipe Fittings?
Environmental factors have a great influence on the service ability and life of malleable cast iron pipe fittings used in water supply lines, industrial lines or fire protection systems.
Corrosive and Humid Environments
In coastal situations and on sites of chemical plants where high humidity accelerates oxidation, the coating provided by hot-dip galvanized finishes is particularly effective against the risk of rust. By implementing a program of regular inspections for early signs of attack which could compromise the service life of a component, it is possible to extend the life of items that are exposed to moisture. Protective coatings and painting can also be used to extend service life of items that are exposed to moisture on a continuous basis.
High-Temperature or Fire-Prone Areas
The majority of fittings required for fire protection applications are required to maintain their mechanical properties at elevated temperatures. Therefore Black malleable iron products are preferred to decorative finishes. Tested in accordance with the NFPA guidelines these fittings meet fire safety codes & standards while continuing to provide necessary function in emergency situations.
Underground and Outdoor Installations
Anti-corrosion wrapping or epoxy coating is typically applied to underground installations to guard against soil induced degradation. Exposed areas that are to be left outside should be coated with a suitable UV resistant finish to prevent attack from sunlight. Adequate provision for drainage around buried joints is also vital to prevent corrosion in service.
Why Are Malleable Iron Pipe Fittings Preferred in Fire Protection Projects?
Malleable iron pipe fittings are being used more frequently in fire protection systems because they offer a number of advantages to other materials, including greater strength, greater reliability and ease of installation in threaded piping systems.
Structural Integrity Under Pressure and Heat
Our fire fittings retain their mechanical properties in extreme heat and can be mated together using threaded connections thus avoiding the need for any welding sparks. The mated fittings are therefore suitable for chemical plants and for use in confined spaces where flammable materials would pose a problem and normal methods of connection using flammable gaskets etc. would be unsuitable.
Compliance with Fire Safety Standards
Most FLUID TECH products meet the required UL/FM ratings for sprinkler systems used worldwide. All the fire protection products we export have FM/UL/CE/LPCB/VDS approvals. In addition to the required FM/UL approvals for our products, the factories that manufacture for us have been approved for ISO, SGS and TUV inspections to guarantee dimensional accuracy and leak-tight performance under emergency operation pressure.
Maintenance and Longevity Advantages
Our Threaded malleable iron fittings have the advantage of being easily taken apart for inspection, without the need for prolonged down time as is the case with welds. This, along with their resistance to cracking, allows for extended periods between maintenance, malse they resist cracking far better than most cast irons currently in use, which can easily crack with aging.
How Can Engineers Optimize Selection Based on Application Requirements?
Suitable products are selected on the basis of technical specification and project specific requirement, complying with safety codes.
Evaluating System Design Parameters

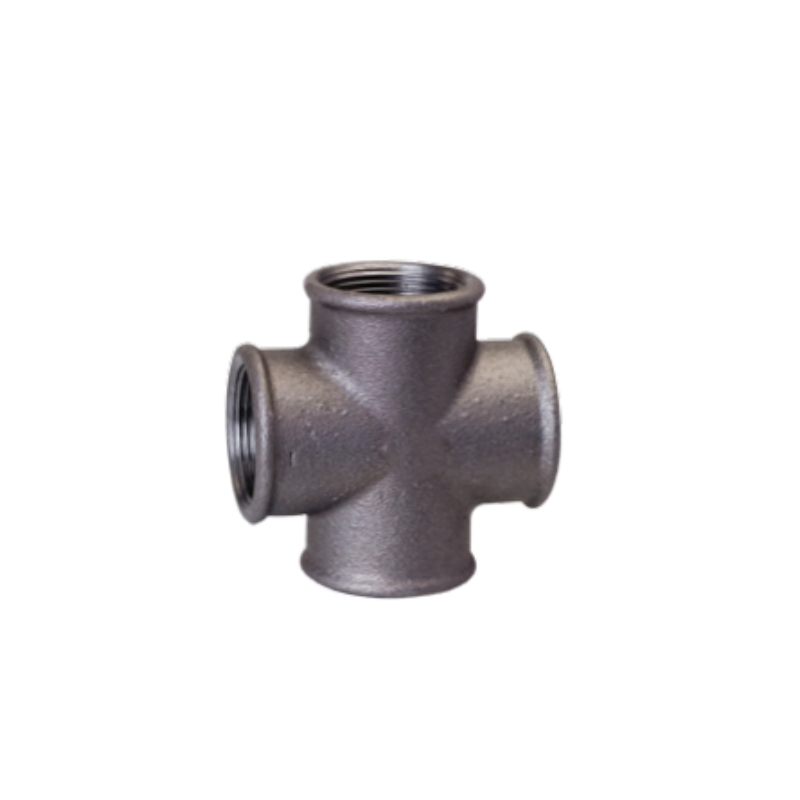

It is imperative prior to choosing fitting types such as elbows, tees, couplings or crosses that the design take into account factors including the required flow rate and the fluid being used (water, gas or air), plus the required complexity of the overall installation. The Malleable iron equal Cross Fig 180 beaded DIN connection is suitable for use in water distribution and also in compressed air systems due to its 4 way flow and equal diameter connection properties making it an extremely versatile fitting.
A key consideration when specifying hydraulic fittings throughout the system’s lifecycle is to balance cost with performance reliability to minimize the need for future replacement, choosing the most durable fitting for the longest possible life.
Integrating Standards and Certifications into Procurement Decisions
Procurement documents should specify compliance with ASME B16.3/B16.39 or equivalent international standards such as DIN EN 10242 used by Fluid Tech’s DIN series products. Engineers should request manufacturer test certificates verifying pressure ratings before installation approval.
Ensuring Installation Efficiency and Maintenance Accessibility
Fittings shall be so arranged as to be readily accessible for maintenance without having to take large sections of pipeline out of service. The use of uniform thread sizes for all bolted fittings on-site greatly simplifies inventory management. It also prevents the risk of incorrect parts being used during the assembly phase.
Who Is FLUID TECH PIPING SYSTEMS (TIANJIN) CO., LTD?
Fluid tech group is the first company in northern China that specializes in the field of fire protection with his own brand -IF grooved coupling and grooved fittings. In 2018, flutech piping systems was established in tianjin in cooperation with several foundries and pipe fittings processing plants. The company provides one-stop procurement services for construction companies around the world. The fire protection products exported by us have passed FM/UL/CE/LPCB/VDS certifications, and the factories involved in the production have passed iso, sgs, and tuv certifications.
BS/EN, American, DIN malleable iron pipe fittings, as well as other malleable, ductile iron fittings, such as e.g. grooved couplings, industrial valves, seismic bracing systems, fire sprinkler systems and accessories like fire sprinkler flexible hoses and others, like nipples, sockets, flanges, and a wide variety of other types of forged steel pipe fittings. Please visit our official website to see the full list of the products that we supply with. Our aim is to provide the highest quality of products and use our professional knowledge to answer any questions of our customers, and finally to provide professional one-stop type of service that will save customers’ money.
What Key Takeaways Should Be Remembered When Choosing Malleable Iron Pipe Fittings?
Choosing the right malleable iron pipe fittings depends on several key factors including environmental conditions such as high humidity or low temperatures. This also includes basic material properties, compatibility between parts, adherence to industry standards, and facilitate future maintenance activities throughout the system’s various life cycle operation periods. The considerations listed above improve safety in fire protection systems while enhancing long-term efficiency.
FAQs About Choosing Malleable Iron Pipe Fittings
1. What distinguishes malleable iron from cast iron in piping applications?
Malleable iron is heat treated to modify the carbon in the material to form nodules. This allows malleable iron to have much greater ductility than other cast irons. This material is particularly suitable for pressurized threaded pipe work subject to sudden shock loading and requires high ductility.
2. Are galvanized malleable iron fittings necessary for indoor installations?
Although not required for indoor applications where moisture levels are low, galvanized coatings provide an additional layer of protection against oxidation. This is particularly important in humid locations such as basements, or pump houses within large buildings.
3. How often should malleable iron pipe fittings be inspected in a fire protection system?
Inspection intervals depend on local regulations but generally occur annually during scheduled maintenance checks focusing on joint tightness verification and corrosion control effectiveness within sprinkler networks or riser assemblies used throughout modern fire protection projects managed by certified contractors worldwide.
