Uncompromising Quality: Fluid Tech Piping Systems Passes Rigorous Third-Party ASTM A536 Inspection

1. Introduction: Unwavering Commitment to Piping Excellence

In the global fluid handling and piping infrastructure industry, safety, reliability, and structural integrity are paramount. Whether in municipal water supply networks, fire protection systems, industrial processing plants, or HVAC applications, high-performance pipe fittings must withstand immense pressure, mechanical stress, and harsh environmental conditions. At Fluid Tech Piping Systems (Tianjin) Co., Ltd., quality is not merely a goal; it is the cornerstone of our manufacturing philosophy.

To continually validate our manufacturing standards and provide full transparency to our global client base, Fluid Tech recently underwent an extensive, unannounced third-party inspection commissioned by one of our valued international clients. Conducted at our Weifang Foundry facility on August 15, 2026, the inspection evaluated our raw materials, casting processes, microstructural integrity, and mechanical performance.

We are proud to announce that Fluid Tech Piping Systems successfully passed all third-party inspection tests with zero major Non-Conformance Reports (NCR: N/A). The inspection report (Report No. MD-FT2601-D03) confirms that our ASTM A536 Grade 65-45-12 ductile iron casting fittings fully comply with—and exceed—international quality and engineering standards.

In this article, we take an in-depth look at the third-party inspection process, examining the specific parameters tested—including mechanical property testing, chemical analysis, and metallographic evaluation—and what these outstanding results mean for our customers worldwide.

2. The Scope and Framework of the Third-Party Inspection

Third-party witnessing is an essential practice in industrial procurement. It guarantees that material testing is free from bias, executed using calibrated equipment, and adhered to under strict international standardized protocols.

The third-party inspection (Contract Reference & Purchase Order: MD-FT2601) was conducted by an authorized independent inspector, Mr. Zhang, who carried out full on-site random witness supervision at our Weifang Foundry. The primary focus of the assessment was our ASTM A536 Grade 65-45-12 ferritic ductile iron material, widely recognized for its superior tensile strength, excellent yield resistance, and balanced elongation properties.

Standard Specifications Referenced

• ASTM A536-84 (2019)e1: Standard Specification for Ductile Iron Castings (specifically Grade 65-45-12).
• GB/T 1348-2019: Spheroidal Graphite Iron Castings (referencing Grade QT450-10, equivalent ferritic grade).
• GB/T 9441-2019: Metallographic Examination of Spheroidal Graphite Cast Iron.

3. Key Test Results: In-Depth Breakdown

The comprehensive inspection encompassed three mandatory technical evaluation pillars: Uniaxial Tensile Mechanical Testing, Chemical Composition Analysis, and Metallographic Examination. Below are the detailed findings and verified metrics from the third-party report.

3.1 Mechanical Property Testing: Exceptional Strength and Ductility

Mechanical properties determine how pipe fittings behave under structural loads, water hammer effects, and system pressures. The tensile test was executed on a WE-600D Tensile Testing Machine (Instrument No. 2414151). Prior to testing, the inspector verified the calibration validity of the testing apparatus. The machine’s quality system strictly complies with ISO/IEC 17025:2017, with metrological traceability certified by CCIC Metrology Co., Ltd. (Certificate No. 260803LX020).

These results illustrate that Fluid Tech ductile iron fittings offer an exceptionally high safety factor. A higher yield strength guarantees that our fittings can endure sudden pressure surges without plastic deformation, while optimum elongation prevents brittle failure under dynamic loads.

3.2 Metallographic Examination: Microstructure Precision

The mechanical performance of ductile iron is fundamentally governed by its internal microstructure—specifically graphite shape (nodularity) and matrix composition. Microstructural flaws, such as vermicular graphite or high pearlite concentration, significantly reduce ductility and impact toughness. Under 100× optical magnification, two key metallographic indicators were assessed:

• Graphite Nodularity Grading: ASTM A536 Grade 65-45-12 requires nodularity of ≥ Grade 3 (nodularity rate ≥ 82%). Micrographs showed highly uniform, well-distributed spherical graphite nodules with negligible vermicular graphite. Recorded result: Grade 3 (Nodularity Rate ≥ 82%) — Qualified.
• Pearlite Matrix Proportion Assessment: As a ferritic ductile iron grade, ASTM A536 Grade 65-45-12 mandates that the pearlite matrix content must not exceed 10%. Etched metallographic specimens confirmed a clean ferrite-dominated matrix, with only scattered, minute pearlite flakes distributed locally. Recorded result: ≤ 8% Pearlite Content — Fully Compliant.

The combination of high nodularity and a low-pearlite ferritic matrix explains the superior elongation and shock resistance exhibited during the tensile test.

3.3 Chemical Analysis: Precise Solution Chemistry

To verify chemical homogeneity and purity, random samples were drawn from finished-grade QT450 / Grade 65-45-12 cast fittings (such as elbow components). Both spectrographic analysis and chemical wet solution testing were performed. According to ASTM A536 Clause 9.1, chemical composition is subordinate to mechanical properties; however, maintaining strict chemical controls is essential for consistent batch quality and corrosion resistance.

By maintaining ultra-low sulfur (≤ 0.012%) and phosphorus (≤ 0.020%) levels, Fluid Tech effectively eliminates harmful inclusions that cause hot shortness and material brittleness.

4. Why Third-Party Verification Matters to Our Customers

In today’s global supply chain, buying engineering materials requires absolute trust backed by verifiable data. Client-initiated third-party inspections serve as an independent seal of quality, offering crucial advantages to contractors, distributors, and engineers:

• Risk Mitigation in Critical Infrastructure: Fittings installed in municipal water networks, high-rise fire protection systems, or industrial processing units operate under high pressure. Verified mechanical strength minimizes failure risks and costly repairs.
• Complete Traceability & ISO/IEC 17025 Compliance: All instruments used during testing—from tensile machines to optical emission spectrometers—were verified for current calibration validity and metrological traceability.
• Full Batch Consistency: Random sampling from finished products guarantees that our standard production batches consistently meet specified international standards rather than rely on pre-selected lab samples.
• Enhanced Service Life: Optimal nodularity and chemical balance ensure high corrosion resistance, ductility, and structural longevity, lowering the total cost of ownership (TCO) for end-users.

5. Manufacturing Excellence at Fluid Tech’s Weifang Foundry

The successful completion of Report No. MD-FT2601-D03 reflects Fluid Tech Piping Systems’ long-standing investment in state-of-the-art foundry technology and strict quality assurance controls.

Located in Weifang, China—one of the world’s premier casting manufacturing hubs—our foundry utilizes modern cupola and electric induction melting furnaces, automatic molding lines, and advanced spectroscopic and mechanical labs. Every step of our manufacturing pipeline—from raw material selection and liquid metal nodulization to final shot blasting and machining—is closely monitored by certified quality inspectors.

Beyond ASTM A536 Grade 65-45-12 ductile iron fittings, Fluid Tech produces a comprehensive range of piping products, including:

• Grooved Fittings and Couplings for fire protection and HVAC systems
• Ductile Iron Flanged Fittings and Adapters
• Threaded Malleable & Ductile Iron Pipe Fittings
• Custom Industrial Casting Solutions tailored to global client requirements

6. Conclusion: Partner with a Verified Industry Leader

Passing third-party inspection with zero non-conformances highlights Fluid Tech Piping Systems (Tianjin) Co., Ltd.’s commitment to high manufacturing standards, total transparency, and client satisfaction. Whether you are an engineering procurement manager, a global distributor, or a project contractor searching for trustworthy piping components, Fluid Tech provides certified products that perform reliably under the most demanding conditions.

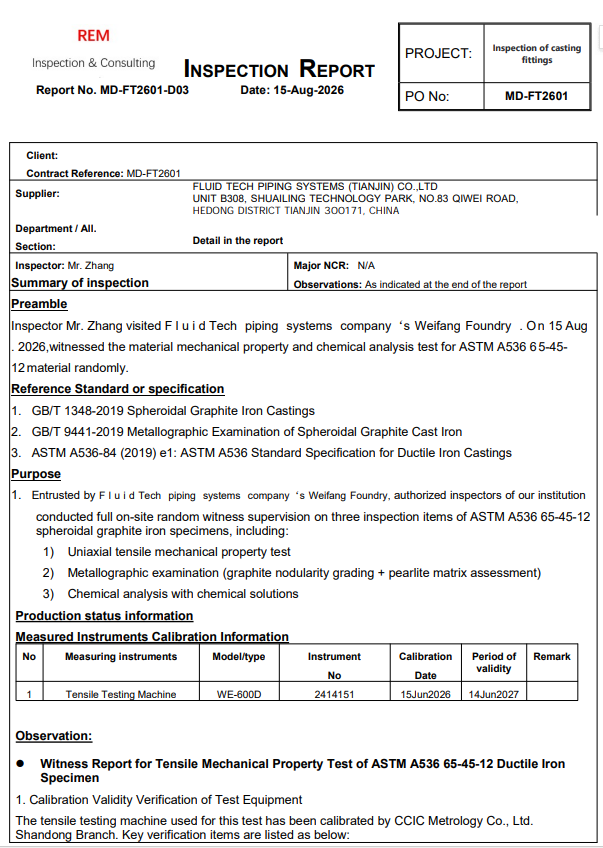

检测报告 MD-FT2601-Raw material lab re-test inspection report on 15Aug2026(1)
