Introduction
Fire pipeline renovation and branch tapping have always been the most troublesome part of commercial and industrial fire engineering. Traditional branch solutions such as cutting main pipes, installing mechanical tees or welded ordinary outlets often cause construction shutdowns, pipeline damage, hidden leakage risks and failure to pass fire inspection. For large-diameter grooved fire protection pipelines ranging from 100mm to 200mm, the Black Steel Grooved Profile Branch (Grooved Side Outlet) has become the most ideal upgrading solution for overseas fire projects with its unique grooved quick-install structure and welded reinforcement design.
Different from threaded firelets and small-diameter half sockets, this grooved profile branch is specially designed for large-bore black steel fire pipelines. It perfectly solves the pain points of difficult branching, slow construction and poor pressure resistance of traditional grooved pipe systems, and is widely recognized in overseas factory, warehouse and large commercial building fire supporting projects.
What Is a Black Steel Grooved Profile Branch (Grooved Side Outlet)?

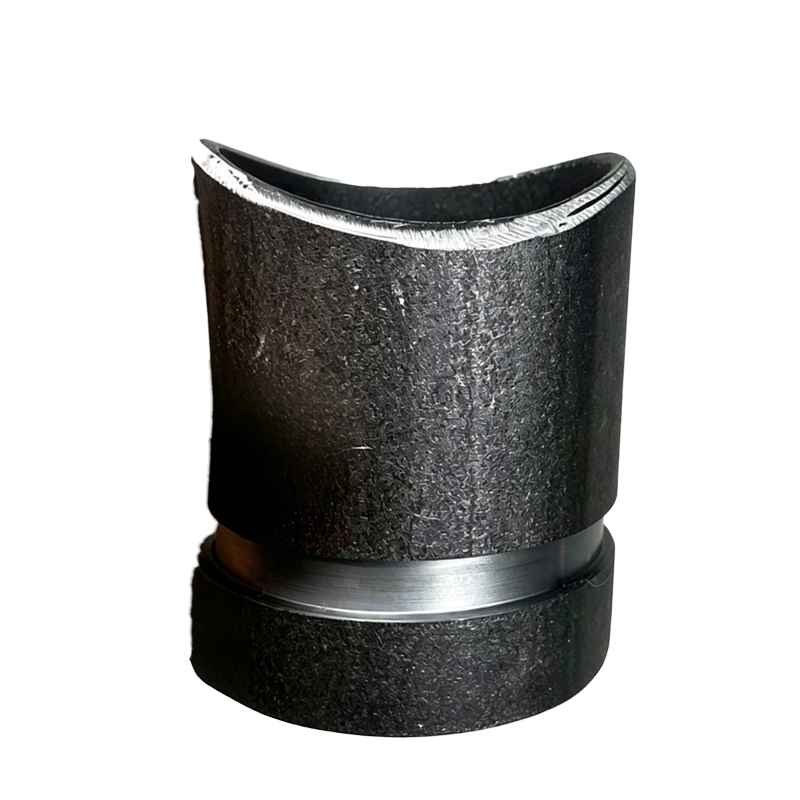

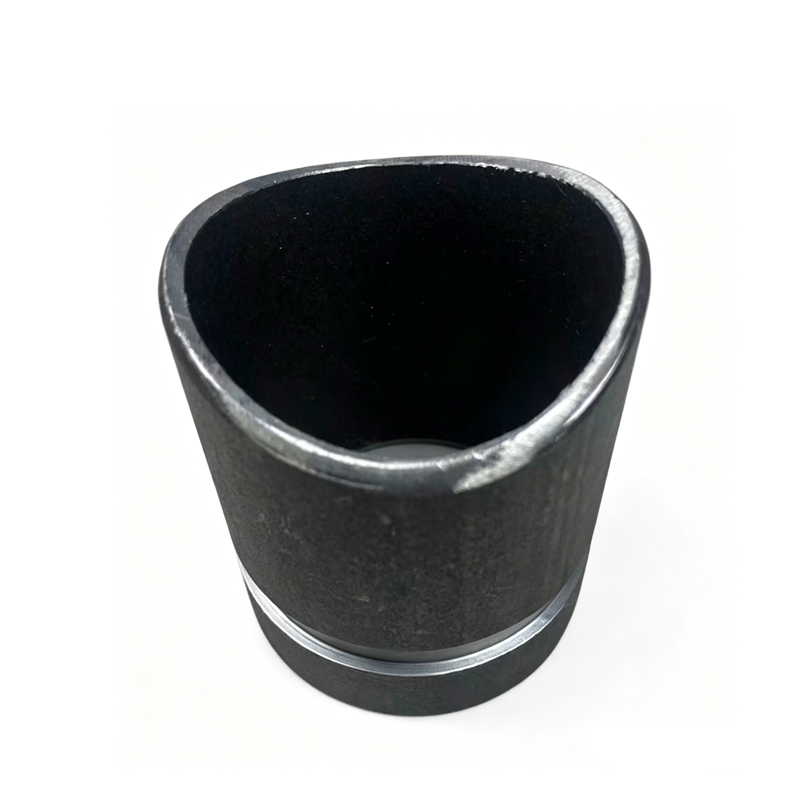

Black Steel Grooved Profile Branch, also known as grooved side outlet and grooved welded profile socket, is a professional grooved branch fitting for fire protection pipelines. It adopts high-quality black carbon steel integrated forming process, with a streamlined profiling fit base, which can closely fit the outer wall of the main pipe.

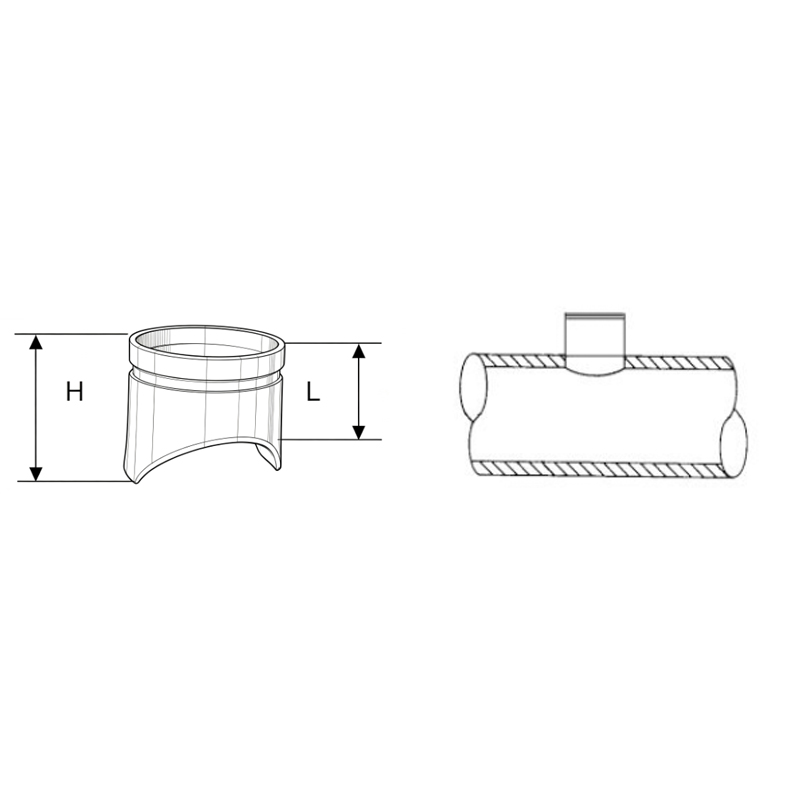

Different from full-welded threaded branch seats, its core feature isone-piece grooved side outlet design. The bottom is fixed by lap welding with the main pipe for reinforcement, and the branch end adopts standard grooved connection. It does not need threaded conversion, and can directly match grooved couplings, branch pipes and fire supporting fittings to realize fast mechanical assembly.
Core size advantage: It covers 100mm–200mm large-diameter pipeline specifications, fully matching the mainstream main pipe size of overseas industrial fire protection systems, making up for the vacancy of large-bore grooved quick-branch fittings.
Key Benefits of Grooved Profile Branch for Fire Pipeline Projects
1. No Main Pipe Cutting, Ultra-Fast Retrofit
The biggest advantage of the grooved profile side outlet is that it does not need to cut or disconnect the intact main fire pipe. It only needs simple positioning and lap welding on the outer wall of the main pipe to complete the branch opening construction. It avoids long-term water and gas shutdown caused by pipe cutting, greatly shortens the construction cycle, and is very suitable for the renovation and expansion of operating factories and shopping mall fire systems.
2. Welded Reinforcement + Grooved Quick Connection, Double Safety
Compared with ordinary mechanical tees that are easy to loose and deform under pressure, this profile branch adopts main pipe welding reinforcement, with strong structural rigidity and stable pressure resistance. The side grooved outlet abandons the cumbersome thread sealing method, uses rubber gasket + grooved clamp locking connection, which has better overall sealing performance, effectively avoids pipeline leakage, and meets the long-term stable operation requirements of medium-pressure fire pipelines.
3. Professional Black Steel Material, Adapt to Harsh Engineering Environments

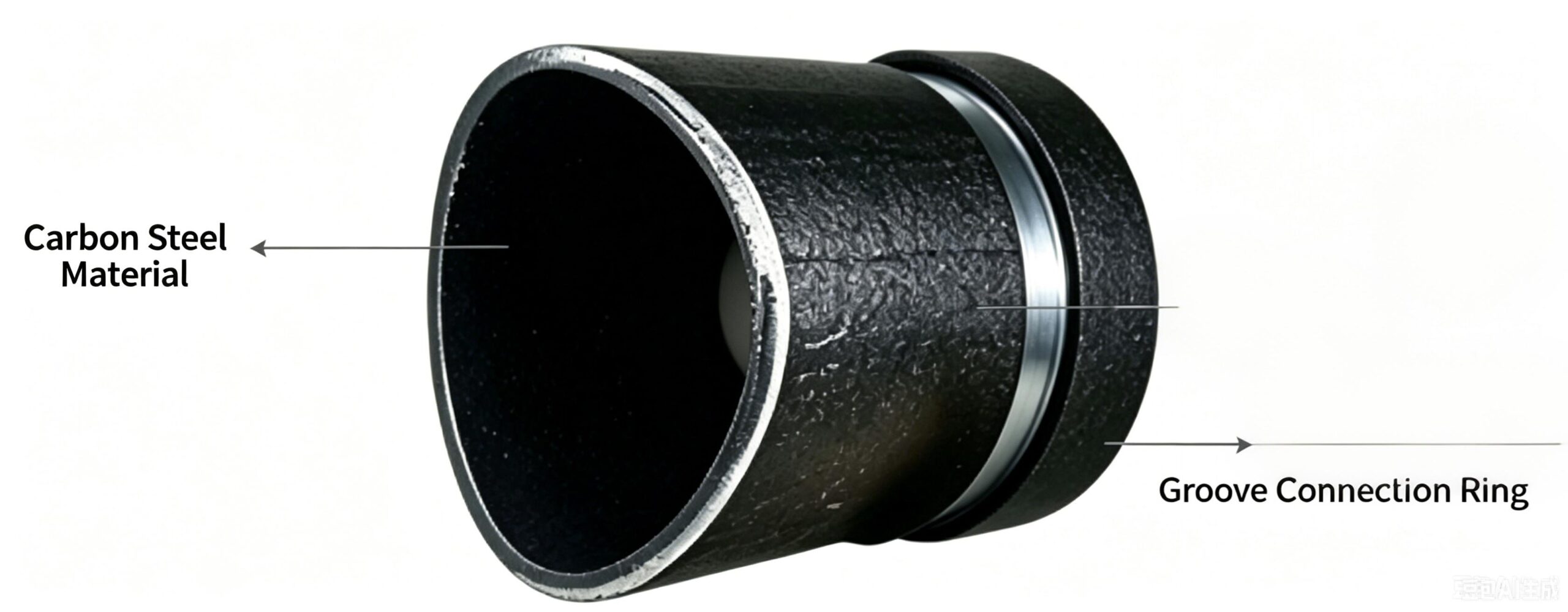

Made of standard black carbon steel with natural anti-oxidation surface layer, the fitting has high mechanical strength, good weldability and excellent corrosion resistance. It is suitable for indoor and outdoor fire pipeline systems, and can adapt to complex working environments such as high humidity and industrial corrosive atmosphere, with long service life and low later maintenance cost.
4. Standard Universal Design, Compatible with Overseas Pipeline Systems
The grooved size and welding profile size are in line with international fire pipeline supporting standards, compatible with mainstream SCH40/SCH80 steel pipes and standard grooved pipe fittings in Europe, America, Southeast Asia and other regions. No customized processing is required, and the installation and docking are highly versatile, which is convenient for overseas engineering procurement and construction.
Common Application Scenarios of Grooved Side Outlet Fittings
Branch tapping and new sprinkler position expansion of 100–200mm large-diameter grooved fire main pipes
Fire pipeline renovation projects of industrial factories, logistics warehouses and large supermarkets
Medium-pressure water delivery fire protection systems for commercial buildings and public facilities
On-site quick branching and temporary and permanent branch pipeline construction of grooved pipe systems
Standard Installation and Maintenance Guidelines
Installation Steps：First polish and remove oxide scale and rust on the surface of the main pipe fitting position, accurately position the grooved profile branch, fix it by lap welding, ensure the welding seam is fully fused and free of pores and cracks. After the welding surface is cooled, install a standard grooved rubber gasket and coupling, and tighten the bolts diagonally and evenly to complete the branch connection.
Daily Maintenance：For outdoor exposed pipelines, apply anti-rust coating on the welding seam and fitting surface regularly. Periodically check the tightness of grooved clamps and the integrity of rubber gaskets to prevent medium leakage caused by aging and loosening. Regular pipeline pressure tests can ensure the stable performance of the branch outlet for a long time.
Conclusion: Why Choose Grooved Profile Branch for Fire Retrofit?
In overseas large-diameter grooved fire pipeline engineering, Black Steel Grooved Profile Branch (grooved side outlet) is an irreplaceable professional branch fitting. It perfectly balances construction efficiency, structural safety and engineering cost. Compared with traditional pipe cutting and threaded branching schemes, it has obvious advantages in renovation projects and large-scale new fire protection projects, and is the preferred grooved branch solution for modern overseas fire engineering.
