A suspended ceiling can leave very little room between the sprinkler branch line and the final head location. Flexible sprinkler hose assemblies can simplify that last connection, but a hose chosen only by length may create a tight bend, unnecessary hydraulic loss, or an unstable sprinkler position. Contractors and buyers should specify the complete assembly: hose type, route, bend limits, inlet and outlet connections, listed performance, and a compatible support bracket.
What Does a Flexible Sprinkler Hose Assembly Include?
The flexible section is only one part of the installation. Knowing what the finished assembly must contain helps the buyer avoid ordering a hose that cannot be secured or connected to the specified sprinkler.
How Does the Hose Connect the Branch Line to the Head?

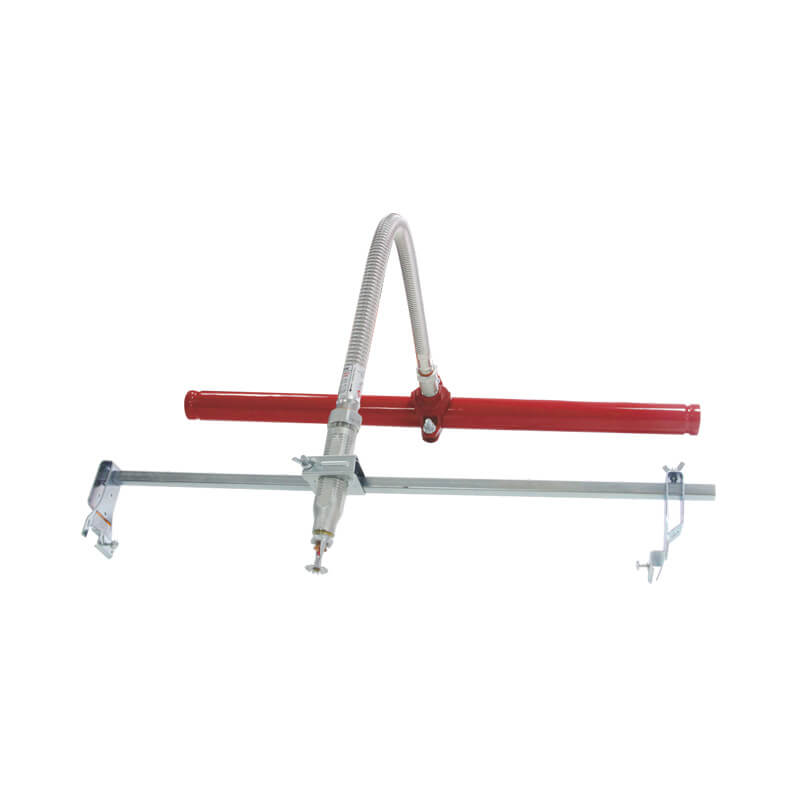

A typical assembly connects the rigid sprinkler piping to an outlet near the ceiling grid. It includes a corrugated metal hose, inlet connection, outlet fitting, seals, and an approved support arrangement. The hose allows the outlet to be positioned within the permitted routing envelope.
Why Do the Bracket and Ceiling Type Matter?
The outlet must remain at the intended location after the ceiling is completed and serviced. A bracket suited to the approved ceiling construction helps control head position and prevents the outlet from moving as tiles are handled.
How Should Hose Length and Bend Arrangement Be Selected?
The shortest hose is not necessarily the correct hose, and the longest is not automatically the easiest to install. Length selection should follow the actual branch-to-head route and the particular assembly’s listing or approval data.
How Can Contractors Measure the Real Routing Distance?
Measure from the branch connection to the planned sprinkler outlet after allowing for ceiling depth, obstructions, and required fitting access. Mark the position of ducts, beams, lighting, and cable trays that could constrain the hose. Include a practical installation allowance, but do not order extra length simply to coil unused hose above the ceiling.
Why Are Bend Radius and Bend Count Important?
A sharp bend can restrict the hose and depart from its tested configuration. Multiple bends can also increase pressure loss. Fluid Tech’s flexible-hose product information lists minimum bend radius, maximum permitted bends, and equivalent length by assembly configuration. Buyers should use the data for the exact length, connection size, and approval rather than applying one value to every hose in the catalog.
Does Braided or Unbraided Hose Change the Buying Decision?
Both configurations can be offered for sprinkler connections, but their construction and product tables are not interchangeable.
What Should Be Checked for a Braided Hose?

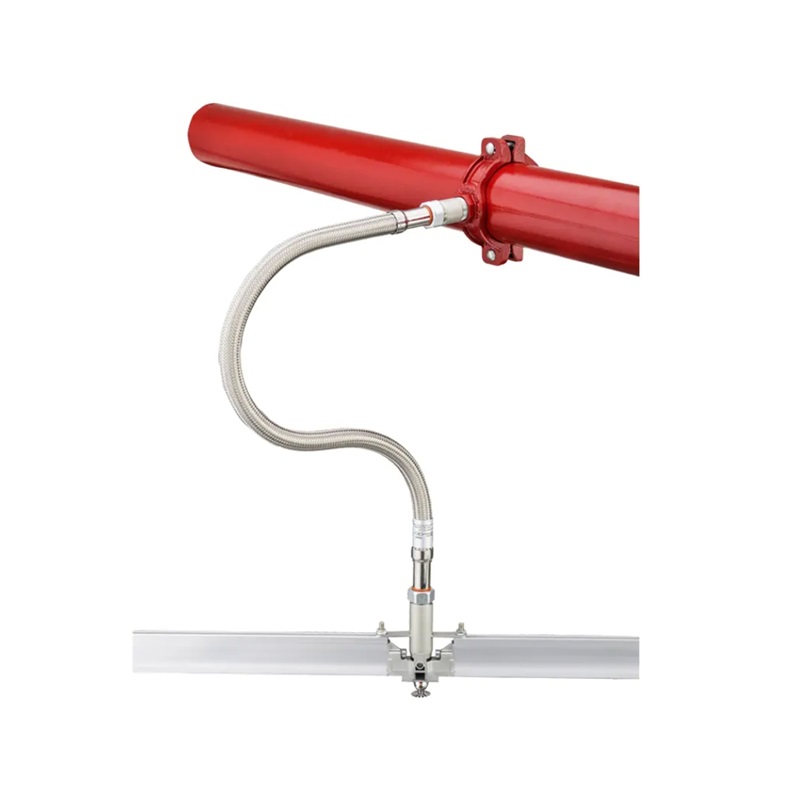

An outer braid forms part of the hose construction and may be specified to suit a particular product design. Fluid Tech offers a braided flexible hose line with listed configurations for sprinkler connections. Review the exact hose length, allowed bends, connection thread, pressure rating, and hydraulic equivalent length on its approved data sheet.
When Might an Unbraided Assembly Be Specified?
An unbraided hose can also be used where its specific listed installation arrangement meets the project requirements. Fluid Tech publishes unbraided assemblies with model-dependent bend limits and equivalent-length information. If a supplier proposes an unbraided alternative to a braided item, compare the complete assembly submittals and confirm that the change is accepted by the project designer or authority having jurisdiction.
How Does Hose Selection Affect Sprinkler Hydraulics?
Flexible hose assemblies are short, but their corrugated flow path and bends can contribute more resistance than a straight length of equal-diameter rigid pipe.
What Is Equivalent Length Used For?
Equivalent length expresses the flow resistance of an assembly as an equivalent run of reference pipe. Use the value identified in the manufacturer’s approval data for the particular hose model, length, outlet, and bend arrangement. The approved sprinkler design should account for the selected assembly at the intended operating flow.
Can a Longer Hose Be Installed to Save Labor?
A longer hose may make an awkward ceiling location easier to reach, but it can add resistance and material cost. Compare the longer assembly against a more direct branch connection or an adjusted outlet location.
What Must Be Confirmed Before Installation and Handover?
Specification is complete only when the jobsite team can identify the correct product and reproduce its approved installation. Small omissions at this stage can lead to rework after ceiling panels are fitted.
Which Connections and Bracket Details Should Be Listed?
Record the inlet connection, sprinkler outlet thread, sprinkler compatibility, hose length, bracket arrangement, ceiling construction, and any required fitting orientation. Fluid Tech lists flexible-hose assemblies with a one-inch inlet and half-inch or three-quarter-inch outlet options; the exact thread form must also match the ordered sprinkler and pipe fitting. Verify that the supporting bracket and its hardware are part of the supplied assembly or order them separately.
What Should the Installer Inspect?
Inspect the hose and seals for damage, make sure the outlet is firmly supported, and route the hose without twisting or forcing bends below the approved minimum radius. Verify that the sprinkler position meets the approved drawings. After installation, follow the manufacturer’s tightening directions and the project’s required testing and inspection procedure. Do not conceal a visibly kinked or unsupported assembly above a finished ceiling.
How Can Fluid Tech Help Buyers Specify the Complete Assembly?
Fluid Tech Piping Systems (Tianjin) Co., Ltd. supplies braided and unbraided sprinkler flexible hoses as well as related bracket components within its fire protection product range. Its one-stop procurement approach allows buyers to coordinate the hose, support assembly, sprinkler connection, and accompanying piping accessories in one request. For every order, ask for the exact model data and applicable approval documents so the supplied assembly matches the hydraulic design and the ceiling installation.
Conclusion
A flexible sprinkler hose should be specified as a complete, approved connection from the branch line to a supported head. Measure the actual route, check bend limits and equivalent length, match the inlet and outlet threads, and confirm the bracket fits the ceiling arrangement. Treat braided and unbraided options as model-specific assemblies. Doing so helps contractors protect hydraulic performance while reducing ceiling coordination and installation rework.
FAQs
Can a flexible sprinkler hose be bent into any shape?
No. Follow the selected assembly’s minimum bend radius, maximum bend count, and permitted installation configuration. Do not kink, twist, or coil the hose to use up excess length.
Does a longer flexible hose increase pressure loss?
It can. Select the equivalent-length data for the exact hose model and routing arrangement and have the hydraulic design checked before substituting a longer hose.
Is a hose enough to support a pendent sprinkler?
No. The outlet requires the manufacturer-approved bracket or support arrangement compatible with the specified ceiling construction and sprinkler installation.
